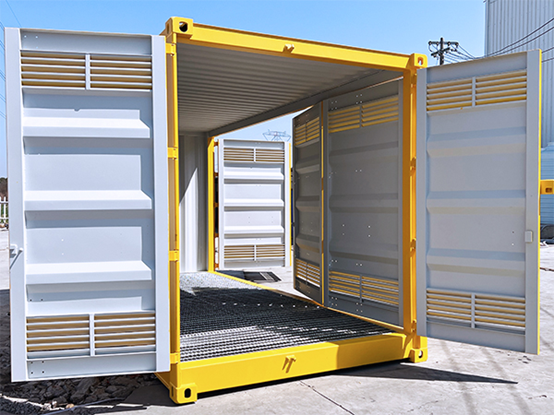

Ensuring Safety: The Essential Guide to Dangerous Goods Storage Units for Transport

Moving and housing hazardous materials isn’t simply a matter of using an ordinary metal box. Chemicals, biological waste, and flammable liquids pose such threats that the level of engineering required is highly specialized. Safety should be considered a legal, as well as a moral and practical, obligation in any industrial activity. This article delves into the essential features and framework requirements of high-grade dangerous goods storage units to keep your business both compliant and safe.

Having more than 6 years of experience working at MEOX in the design and manufacturing of specialized prefab house containers, I have focused on creating modular solutions for complex industrial environments throughout my career. My specialization is in the fusion of advanced fire protection and explosion-proof systems with portable structures, thus ensuring compliance with the highest international safety standards.

The Foundation of a Reliable Storage Unit

The first step in the safety of a hazardous materials storage unit comes from its structural material. Most of these units are subject to severe weather and corrosive chemicals. Employing superior materials such as Corten A steel guarantees that the container endures the outdoor conditions for at least ten years.

Table 1: Structural Materials and Coating Specifications for Dangerous Goods Storage Units

Specialized Engineering for Hazardous Environments

Safety in these units is ensured by using a mixture of active and passive systems. Secondary containment storage systems, for example, play a crucial role. Such installations are equipped with liquid collection troughs and pits so that any leaks are prevented from being released into the atmosphere.

Besides, the electrical systems have to be explosion-proof. Both wiring and lighting have to meet very strict standards, such as GB 3836, to eliminate the risk of sparks in flammable atmospheres. Also, ventilation is very important, and fire dampers are fitted to shut on their own when the temperature goes above 70°C.

Table 2: Safety and Environmental Mitigation Systems for Dangerous Goods Storage Units

Advanced Monitoring and Protection

Contemporary containers for the transportation of hazardous materials are fitted with smart technology. Ultra HD infrared cameras offer round-the-clock monitoring without any blind spots. Moreover, human safety is brought to the top of the list via the installation of emergency eyewash stations and the provision of on-site masks and gloves.

The merger of lightning protection and the use of electrostatic discharge devices represents yet another crucial tier of safety. Such equipment guarantees that static electricity will be discharged prior to the personnel opening the unit, thus, the possibility of a fire accident is greatly diminished.

Table 3: Advanced Monitoring and Emergency Protection Specifications of Dangerous Goods Storage Units

Case Studies

Case Study 1: Chemical Processing Facility, Singapore (2023)

The Problem: The Singapore site was facing difficulties with the storage of volatile chemical waste of a high-risk nature in a tough tropical coastal environment. The high level of moisture and salt carried by the air was the main reason for the rapid corrosion of the standard steel units, which therefore compromised the structural integrity. On top of that, the client did not have a dependable method to contain accidental spills, which raised major issues of environmental compliance as well as safety risks for the local workers.

The Solution: I was responsible for leading the design of a customized explosion-proof cabinet design using Corten A steel reinforced with a high-performance chlorinated rubber topcoat to resist salt-air corrosion. Inside, we laid out a containment storage system with a 2mm stainless steel slotted floor that directs any leaks to an epoxy-coated collection pit. In order to keep the chemicals stable, we decided to bring in a 3P explosion-proof Gree air conditioning system with the convenience of a power-up auto-start feature.

Testimonial: “This container can actually withstand the different elements of the coastal climate, which the MEOX team has provided us with. The automatic fire dampers and leakage recovery system have certainly given our safety team peace of mind, which they did not have with standard units.”

— Dr. Aris Thorne, Project Manager, ChemLogix Solutions

Case Study 2: Mining Research Site, Western Australia (2024)

The Problem: To the remote research site of Western Australia, it was necessary to secure a place for the storage of high-energy lithium batteries and flammable fuel samples. The main problem was the harsh weather; the place is exposed to intense lightning every day, and there is a high level of static electricity. Lack of special grounding, the risk of a disastrous ignition, either from the handling of materials or a lightning strike, was too high for the safety protocols of the mining group.

The Solution: I supervised the setting up of a complete lightning and electrostatic protection system. Among others, a separate lightning surge protector was installed at the main power inlet, and an independent lightning rod mounting to the exterior was installed to make sure the whole container was in the protection zone. Moreover, a special electrostatic discharge device was put at the entrance to freshen up the personnel before they could make contact with any equipment. Besides, heavy-duty modular shelves with anti-topple guardrails were installed to hold the high-value samples safely in case of transport or seismic shifts.

Testimonial: “The safety features MEOX integrated, in particular the grounding system and the 300-lux explosion-proof lighting, rendered the unit highly efficient for our night shifts. The unit is a very tough piece of engineering.”

— Marcus Vane, Site Supervisor, TerraMining Group

Conclusion

Investing in high-quality storage solutions is a must for any business dealing with hazardous materials. From choosing Corten A steel to the precision of explosion-proof electrical systems, each detail counts. As stated by the Health and Safety Executive (HSE) article, proper containment is the primary line of defence against industrial disasters. Moreover, the International Maritime Organization (IMO) stresses that structural integrity is the most important thing for any unit used in the transport of dangerous goods.

If you want to make your operations more secure, MEOX has the top-tier knowledge of the industry in making custom prefab container manufacturing. Our experts remain eager to collaborate with you in designing a solution that adequately fulfills your safety and compliance requirements.

FAQs

How long do Dangerous Goods Storage Units last in outdoor environments?

Units built with Corten A steel and professional anti-corrosion coatings are intended to resist water and remain structurally sound for at least 10 years.

What happens if a leak occurs inside Dangerous Goods Storage Units?

Such units have a secondary containment system where the stainless-steel floor has leakage slots through which the liquid is guided into a collection pit for safe recovery.

Are the electrical systems in Dangerous Goods Storage Units safe for flammable gases?

Yes, the electrical parts, such as lighting and air conditioning, are designed for explosion-proof environments (ExdII BT6 or above) to eliminate any potential ignition sources.

Disclaimer: The technical data and materials shown in this document are for reference only, as they are from a container that MEOX manufactured itself; therefore, the specifications, materials, and technical data might be different.
