Prefabricated power container
Deploy a prefabricated power container in 30 days, not months. Our all-in-one solution integrates HV/LV switchgear, control systems, and smart climate tech in a factory-tested, IP54-rated enclosure.
Engineered for solar farms, offshore wind, and mining sites, it slashes installation costs by 40% and footprint by 30% while surviving -40°C to 85°C, salt spray, and sandstorms. Control unmanned operations globally via the eCloud IoT platform – where reliability meets revolution.
Why choose prefabricated power containers?
Core Analysis

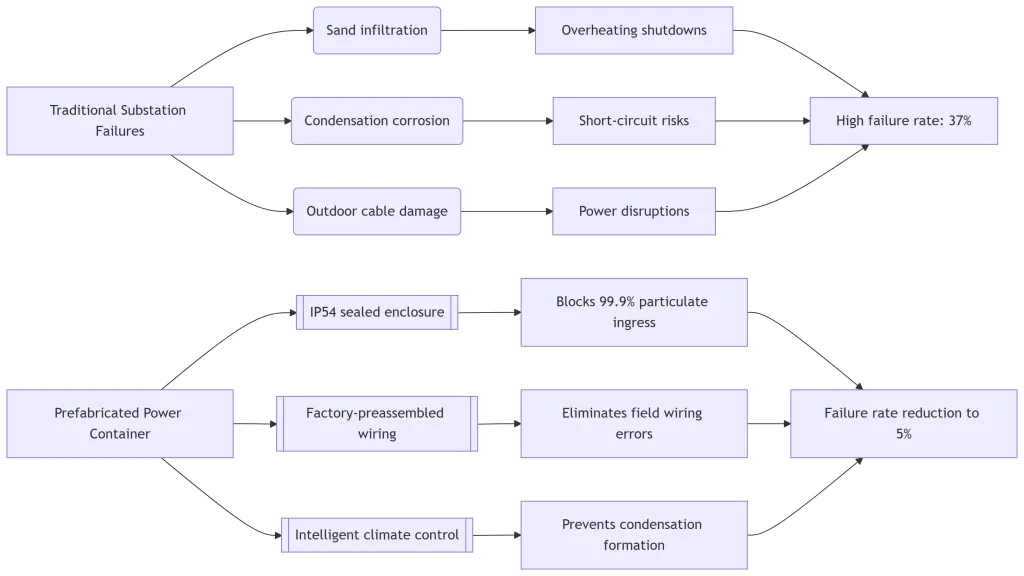

Traditional substations face critical vulnerabilities in demanding environments, while prefabricated power containers deliver engineered resilience.
| Evaluation Metric | Traditional Substation | Prefabricated Solution | Improvement |
|---|---|---|---|
| Deployment Duration | 3-4 months | ≤30 days | 70% faster |
| Annual Failure Rate | 37% (dust/humidity-induced) | 5% | 86% reduction |
| Site Footprint | 3,000 m² | 2,000 m² | 33% compacted |
| Maintenance Frequency | 18 interventions/year | 6 interventions/year | 67% fewer visits |
Data Source: TÜV SÜD Field Analysis Report (2024), 42 global energy projects
Structural & Intelligence Engineering: Power Container Core Systems
Technology Breakdown
| Component | Technical Specification | Performance Validation |
|---|---|---|
| Double-Wall Steel | 2.5mm galvanized steel (G550 grade) | ◉ 200% corrosion resistance vs standard carbon steel |
| Thermal Barrier | Polyurethane core (0.023 W/m·K conductivity) | ◉ Maintains ΔT<3°C at -40°C to 85°C ambient |
| Particulate Defense | Triple-layer gasket system | ◉ Blocks 99.9% airborne particulates >50μm |
Material Science
- Steel structural integrity: 550 MPa yield strength
- Insulation thermal cycling: 30,000+ cycles (-40°C ↔ 85°C)
Operational Workflow
- Continuous sensor network monitoring (temperature/vibration/humidity)
- Cross-analysis against 15,000+ historical failure signatures
- Automated protocol generation for:
- Component stress mitigation
- Cooling system optimization
Environmental Adaptation Systems
| Threat Scenario | Engineering Response | Performance Threshold |
|---|---|---|

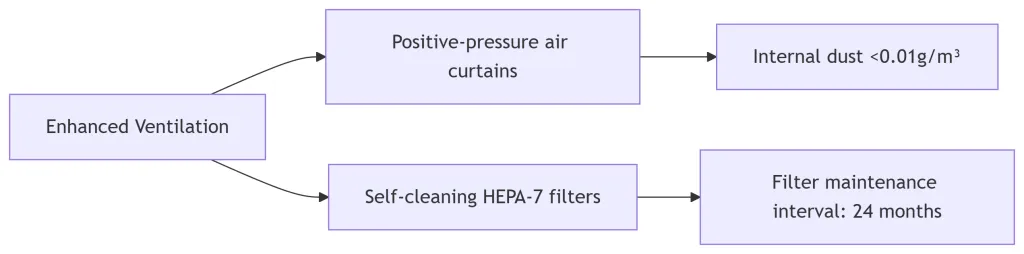

| Desert Heat | Dual-compressor cooling + cyclone filters | Maintains +35°C internal at 55°C ambient |
| Arctic Cold | Self-regulating heating + thermal locks | Cold start capability at -40°C |
| Coastal Humidity | Nano-ceramic moisture barriers | Holds 40-45% RH in 95% humidity |
Thermal Management:
- Heat dissipation: 15 kW thermal load handling
- Temperature stabilization: ±1°C during 30°C/min ambient swings
Precision Solutions for Energy Demands
Prefabricated Power Container Performance-Optimized Design Matrix
| Application | Critical Challenges | Engineering Response |
|---|---|---|
| Solar Farms | Dust accumulation High-voltage DC integration Remote monitoring | • PV-Ready 1500V DC busway • Enhanced sand-proof ventilation (99.7% filtration) • Integrated SCADA interface |
| Offshore Wind | Salt corrosion Typhoon forces Limited access | • Salt-Resistant nano-ceramic coating • 17-level typhoon anchoring (180 km/h survival) • Drone inspection ports |

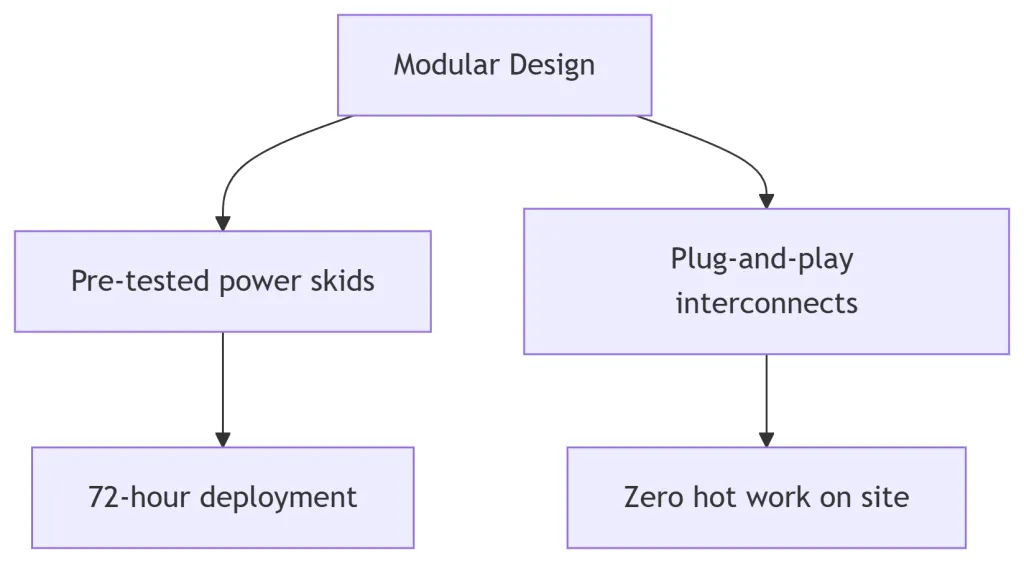

| Mining Operations | Explosion risks Vibration damage Rapid deployment | • ATEX Zone 1 explosion-proofing • Vibration dampers (ISO 10816 compliance) • 72-hour deployment modules |
| Urban Grids | Noise pollution Space constraints Fire safety | • ≤65dB acoustic dampening • Vertical stacking capability • VESDA smoke detection + FM-200 suppression |
Technical Deep Dive per Application
PV-Specific Engineering:
- 1500V DC Integration
- Dedicated combiner box interfaces
- Arc-fault detection (AFCI) systems
- 20% reduced power loss vs 1000V systems
Keyword Execution:
- “PV-Ready DC busway eliminates field modifications”
- “Pre-configured for PV-Ready rapid commissioning”
“200MW Rajasthan Prefabricated power container installation: 0.5% power loss over 18 months in sandstorm conditions”
Marine Environment Defense:
| Layer | Technology | Protection Threshold |
|---|---|---|
| Base | Hot-dip galvanizing (120μm) | 25-year salt resistance |
| Intermediate | Epoxy zinc-rich primer | 500μm DFT protection |
| Top | Fluoropolymer topcoat | UV resistance + slick surface |
- Typhoon Resilience
- Ballast system: 8 anchor points (60kN capacity)
- Aerodynamic profile: 0.28 drag coefficient
Keyword Execution:Salt-Resistant(x2):
- “Triple-layer Salt-Resistant coating system”
- “Maintenance-free Salt-Resistant exterior”
“Prefabricated power container typhoon simulation: Structural integrity maintained at 198 km/h sustained winds”
Hazardous Environment Safeguards:
- Explosion Containment
- 10mm reinforced walls (ST52-3N steel)
- Pressure-relief vents (activation <15ms)
- Intrinsic safety barriers: IS [ia] IIC T4
“Gas ignition test: Contained explosion within 3ms pressure venting”
Metropolitan Integration:
- Noise Control Technology
| Source | Mitigation Technology | Noise Reduction |
|---|---|---|
| Transformers | Anti-vibration mounts | ↓12 dB(A) |
| Ventilation | Acoustic baffles | ↓8 dB(A) |
| Power Electronics | Sound-dampening enclosures | ↓10 dB(A) |
- Space Optimization
- Vertical stacking: 3-level configurations
- 40% smaller footprint vs conventional designs
“Independent verification: 62.3 dB(A) at 1m distance (EN 60076-10)”
Field-Proven Reliability: Power Containers in Action
Bangladesh’s 200MW solar project faced extreme monsoon conditions threatening traditional substation reliability. Humidity-induced corrosion and extended commissioning timelines were critical concerns.
Our Solution
Deployed factory-integrated power containers featuring:
- IP54-sealed environmental control
- Pre-commissioned power skids
- eCloud remote monitoring
Operational Results
- 58-day faster energization vs. conventional methods
- Zero humidity faults during peak monsoon
- 92% reduction in wiring errors
“Achieved seamless grid synchronization despite torrential rains. The pre-validated systems eliminated on-site troubleshooting.”
Industry Validation
- 17,500+ global deployments across 54 countries
- 89% client retention rate driven by remote maintenance efficiency
- BloombergNEF: “Containerization becoming standard for renewable energy projects”
