Hazmat storage containers play a vital role in the safe and efficient handling of hazardous materials, a major component of modern industrial safety. The expansion of global supply networks and the growing complexity of chemicals have led to an increasing demand for hazmat storage containers. Standard warehouses typically lack the specialized engineering necessary to safely store highly hazardous materials, making these specially designed units essential. They are not just ordinary shipping containers, but highly technical, life-saving systems that have been designed to reduce risks such as chemical volatility, fire hazards, and pollution.

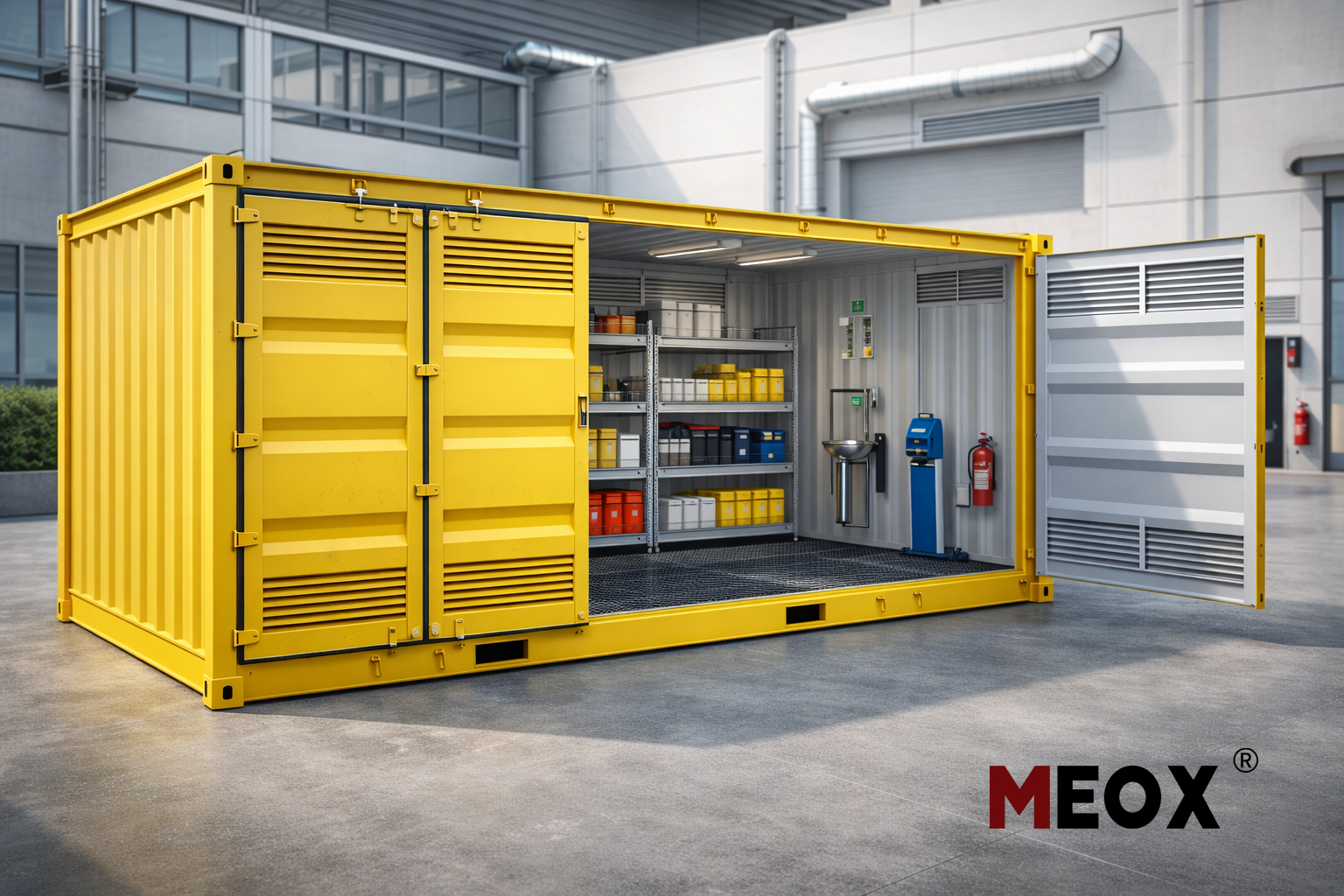

Fig. 1: 3D Visualization of a High-Performance Hazmat Storage Container
I am a Senior Technical Consultant at MEOX, and I have over six years of experience in designing and manufacturing specialized modular structures. During this time, I have completed several containment projects aimed at achieving high safety levels. My expertise mainly involves combining explosion-proof systems and structural soundness to achieve the strictest international safety standards. Since I have been both a factory worker and a designer, I can connect complicated engineering requirements with their practical on-site applications.
Today, I would like to dive deep into the technical requirements of these containers, starting with the metallurgy of the outer shell and going all the way to the complex logic of explosion-proof electrical systems. Besides, we will see how contemporary modular hazardous waste storage units utilize digital monitoring and automatic fire extinguishing to create a “set-and-forget” safety solution for the most dangerous places.
Storage of hazardous materials is subject to very stringent regional laws. ZN MEOX hazmat containers are made to meet the following international safety standards:
United States (OSHA & NFPA): The units are capable of conforming to OSHA 29 CFR 1910.106 for the safe handling of flammable and combustible liquids and to NFPA 30 (Flammable and Combustible Liquids Code).
United Kingdom & Europe (HSE & ADR): The product is suitable for use in a DSEAR (Dangerous Substances and Explosive Atmospheres Regulations 2002) environment and complies with the ADR treaty requirements for the international transport of dangerous goods.
Australia/New Zealand (AS): The products meet AS 1940:2017, the Australian standard for the storage and handling of flammable and combustible liquids.
International: The products conform to the UN Globally Harmonized System (GHS) for classification and labeling of chemicals.
The following matrix outlines the engineering requirements for our hazmat units based on the specific hazard class of the materials being stored:
| Feature | Class 3: Flammable Liquids | Class 8: Corrosive Substances |
| Fire Integrity | 2-hour or 4-hour Fire Rating in accordance with EN 13501-2 or ASTM E119 (Standard Test Methods for Fire Tests of Building Construction). | Focus on structural integrity and vapor containment; fire rating added based on site-specific Risk Assessment. |
| Spill Containment | Integral secondary containment (sump) sized to 110% of the largest stored vessel or 25% of total volume. | Sump lined with HDPE (High-Density Polyethylene) or specialized epoxy to prevent chemical degradation of the steel. |
| Ventilation | ATEX-certified mechanical extraction systems providing 6–10 air changes per hour to prevent vapor build-up. | High-low natural ventilation or corrosion-resistant PVC/PP extraction fans. |
| Electricals | Intrinsically Safe (IS) lighting and grounding points to prevent static discharge. | IP65-rated (minimum) moisture and chemical-resistant light fixtures and switches. |
Jurisdictional Applicability
Safety requirements for hazardous goods are not universal. While the physics of fire is the same, the legal requirements for storage vary by jurisdiction:
In the North American Market: We prioritize compliance with NFPA 704 (Diamond labeling) and OSHA 1910.106.
In the European/UK Market: We focus on DSEAR and the Health and Safety at Work Act, specifically regarding the ‘separation distances’ required for flammable stores.
In Australia: We adhere to the strict Work Health and Safety (WHS) Regulations which mandate specific signage and manifest requirements for placards.”
Picking a 10ft or 20ft unit is more than just measuring the floor space; it has to do with Risk Aggregation vs. Site Compliance Costs. The below matrix looks at the pros and cons of limiting the footprint and assuming the regulatory burden.
| Decision Factor | 10ft Compact Hazmat Unit | 20ft High-Capacity Hazmat Unit |
| Primary Strategy | Point-of-Use Storage: Designed for localized access near production lines. | Centralized Bulk Storage: Designed for warehouse perimeter or yard storage. |
| Compliance Density | Higher Safety Margin: Lower volume of chemicals reduces the “Threshold Quantity” (TQ) for many local fire codes. | Risk Concentration: Large volumes may trigger mandatory automated suppression systems (e.g., AFFF Foam or Dry Chem) under NFPA/HSE. |
| Fire Separation | Easier Setbacks: Smaller footprint makes it easier to maintain the required 3m–10m “clear zone” from existing buildings. | Stringent Zoning: Often requires significant distance from property lines or “Protected Places,” potentially increasing land-use costs. |
| Relative Cost Factor | Higher Cost per $m^2$: Higher engineering overhead relative to size, but lower installation/foundation costs. | Lower Cost per $m^2$: Better economies of scale for large-volume storage, but higher transport and craneage costs. |
| Ventilation Load | Natural or small-scale mechanical (ATEX) is usually sufficient. | Requires high-output, balanced mechanical extraction to prevent “vapor pockets” in larger corners. |
Hazmat container is not just a steel box; it is a safety tool specialized for the job. To keep your facility operating legally, we correlate each design feature with the relevant international fire and environmental codes.
| Container Feature | Regulatory Code / Clause | Engineering Requirement |
| Spill Containment | EPA 40 CFR 264.175 | Sump must be “sufficiently impervious” and hold 110% of the largest container’s volume or 10% of the total volume of all containers. |
| Ventilation | NFPA 30, Section 18.5 | Mechanical ventilation must provide at least 1 cubic foot per minute per square foot of floor area (1 cfm/ft2), typically resulting in 6+ air changes per hour. |
| Explosion Proofing | ATEX Directive 2014/34/EU | All electrical equipment (lighting, fans, sensors) must be rated for Zone 1 or Zone 2 environments to prevent ignition of flammable vapors. |
| Fire Separation | IBC (International Building Code) Table 602 | External walls must meet fire-resistance ratings based on “Fire Separation Distance” to ensure the structure survives a surrounding inferno or contains an internal one. |
The outer shell of a containment unit acts as the first line of defence, protecting not only the chemicals inside but also against the external environment. Choosing the right material for this will determine how long the equipment lasts and how well it can endure harsh physical impacts.
Fig. 2: Industrial Hazmat Storage Container with Interior Shelving and Hazardous Material Labels
The Role of ‘Corten A Steel’
Corten A steel is commonly used in the production of premium explosion-proof container units. It is different from regular carbon steel in that it develops a stable, rust-like protective layer when left outside. This layer actually serves as a protective barrier, thereby significantly slowing the corrosion process.
Main Dimensions: Generally, large-scale units are about 40ft long and are modular in design (e.g., 10.5L + 4.5L) so that separate storage areas can be created.
Weight and Stability: The equipment body ready for installation should weigh at least 6 tons to guarantee its stability under strong winds or changes in internal pressure.
Welding Standards: The frame has to be rolled and gas-shielded welded, and then the slag should be carefully removed to ensure no weak points remain in the weld seams of the structure.
Surface Treatment and Insulation
To achieve a service life of at least 10 years, the steel must undergo a rigorous coating process.
Priming: A zinc-rich epoxy primer is brushed onto recently cleaned, oil-free surfaces.
Topcoat: A high-performance chlorinated rubber topcoat provides chemical resistance.
Base Protection: The bottom surfaces are coated with sealing asphalt paint, which acts as a barrier against ground that would cause the floor corrosion.
Thermal Barrier: The interior walls and ceilings are lined with Class A fire-resistant rock wool boards with a thickness of over 50mm. This prevents external heat from raising the chemicals’ temperature to their flashpoints.
| Component | Material/Requirement | Function |
| Main Framework | Corten A Steel | Atmospheric corrosion resistance and structural strength |
| Insulation | >50mm Class A Rock Wool | Thermal protection and fire-rating compliance |
| Exterior Coating | Chlorinated Rubber Topcoat | High-performance chemical and weather resistance |
| Floor Protection | Sealing Asphalt Paint | Anti-corrosion for the container base |
| Internal Floor | 3mm Anti-static Mats | Prevents spark generation and resists chemical spills |
Table 1: Structural and Material Requirements of Hazmat Storage Containers
If flammable vapours are present in the environment, regular electrical components become a potential danger. All switches, lights, and wiring must be designed to ensure that an internal spark does not cause an explosion.
Every electrical setup inside the container should strictly follow worldwide safety standards without exception. Our units meet the requirements of GB 3836 and GB 50058, but at the same time, they are compatible with international regulations for the equipment used in explosive atmospheres. If you want to learn more about the safety categories in the world, you may check out the International Electrotechnical Commission (IEC) guidelines on Ex-equipment that represent the standard for the prevention of ignition in volatile industrial environments.
Fig. 3: Explosion-Proof Electrical and Lighting System Inside a Hazmat Storage Containers (Ex d IIB T6)
Compliance and Distribution
Electrical installations need to adhere to rigorous standards such as GB 3836 (Explosive Environments) and GB 50058 (Electrical Installations).
Distribution Boxes: These commonly consist of die-cast aluminium alloy shells with epoxy resin coatings, and the rating is ExdII BT6.
Wiring Separation: One of the most important safety measures is the separation of power and low-voltage circuits, as well as the isolation of internal and external wiring.
Conduits: All cables are enclosed in DN20 galvanized steel pipes and explosion-proof junction boxes according to the national standard, so that no exposed wire can serve as an ignition source.
Intelligent Lighting Design
Almost every aspect of the lighting system contributes to safety, beyond the basic requirement of visibility.
Configuration: Typically, units are equipped with 6 sets of 50W explosion-proof energy-saving lamps that provide an illumination level of about 300 lux.
Operational Logic: The lights are coordinated with the main door, turning on when it opens and off when it closes.
Emergency Awareness: If a worker remains inside and the door closes, the lights switch off to signal that the emergency exit should be used or the situation assessed.
Chemicals are sensitive to environmental changes. Therefore, industrial chemical storage solutions must be capable of keeping a constant temperature and supply of fresh air, as these are two conditions that are not subject to negotiation.
Fig. 4: Hazmat Container Ventilation System with Fire Damper and Roof-Mounted Exhaust Fan
Temperature Regulation
High-performance units are equipped with explosion-proof split air conditioners. They sometimes go for Gree compressor units for dependability.
Dual Systems: To ensure redundancy, a mix of a 3P (7.2kW cooling) and a 1.5P (3.5kW cooling) unit is used.
Explosion-Proof Rating: Such devices have to meet ratings like Ex e ib mb nC II C T4 Gb, which means they are safe to work in an environment where gas or dust may be present.
Auto-Start: A power-up auto-start module automatically turns on the cooling system if power is interrupted and then restored, thus preventing temperature spikes.
Ventilation and Exhaust
Proper ventilation ensures that ensures the non-accumulation of harmful or explosive gases.
Air Intakes: A few 250×250 mm intake vents are scattered throughout the storeroom. Amongst these are fire dampers made of SUS304 stainless steel, which will automatically close if the temperature goes up to 70°C.
Active Exhaust: The roof is equipped with explosion-proof centrifugal fans and purification filters that are used to filter exhaust gases before they are vented out into the atmosphere.
Protection: The vents are equipped with a mesh fine enough to prevent rodents or insects larger than 1.5 mm from entering, thus the sensitive equipment inside is always safe from being damaged.
Even with the best preventative measures in place, there is always a need to plan for a “worst-case scenario”. The system combines active firefighting with passive spill containment.
Automatic Fire Suppression
The storeroom is usually fitted with dry powder fire extinguishers of 6 kg that are self-spraying.
Activation: Upon exposure to the temperature of the surrounding environment above 70°C, these systems start automatically.
Coverage: Typically, eighteen units are placed within the storage area so that there are no hidden spots where fire can start without being detected.
Manual Backup: To ensure quick intervention by personnel, two 8 kg dry-powder extinguishers are physically available at the door.
Leakage Management
A great risk in the use of modular hazardous waste storage is a container breach.
Collection Trough: A continuous liquid collection trough is integrated into the centre of the floor.
Surface Coating: The trough is coated with an epoxy resin to make it resistant to chemicals.
Containment Flow: Liquids run down through stainless steel slots into a collection pit, where a plastic leakage bucket is used to make the removal safe and easy.
| System | Component Details | Trigger/Requirement |
| Fire Protection | 8x 6kg Self-spraying extinguishers | Automatic at >70°C |
| Leakage Recovery | Epoxy-coated trough & SS covers | Continuous collection via gravity |
| Disinfection | Explosion-proof UV lamps | Active when personnel leave |
| Gas Monitoring | Combustible & VOC sensors | Continuous real-time detection |
Table 2: Safety and Emergency Systems of Hazmat Storage Containers
It is equally important to make sure that the personnel who handle these units are as safe as the inventory itself.
We have designed the personal protection zones around the critical times in which people need to be helped. For instance, the stainless-steel emergency eyewash and shower unit is located at a distance of 1 meter from the door to make sure that it can be reached within 10 seconds. The same idea has been taken from the strict safety at work standards issued by the Occupational Safety and Health Administration (OSHA) for Hazardous Waste Operations, which require that personnel have instant access to emergency decontamination facilities if accidental chemical exposure occurs.
Video Surveillance
To ensure effective monitoring, high-definition infrared surveillance cameras (generally 4 million pixels or more) are fixed both inside and around the container.
Internal Monitoring: Three of the cameras are in the chemical storage area and two in the biological waste zone (all of which are explosion-proof).
External Monitoring: Three cameras monitor the perimeter.
Storage: The data will be recorded and kept for at least one month, and RJ45 interfaces will be available to connect the system to the campus-wide security system.
Personal Safety Equipment
Each unit comes with a personal safety protection box containing two sets of protective clothing, respirators, face masks, and gloves.
Emergency Stations: A stainless-steel eyewash and shower unit has been placed next to the fire door. One should be able to get to it within 10 seconds, and it should be able to supply water at a rate of 35 L/min for a minimum of 15 minutes.
Case Study 1: Large-Scale Chemical Refinery
Location: Shanghai, China
Time: May 2023
The Problem: For PetroGlobal, it was essential to store some highly volatile chemicals close to the production line. Their main worry was that a local fire might cause a chain reaction in the refinery.
The Solution: I collaborated with Dr. Zhang to finalize a 40ft dual-module container that met our specifications. We improved the fire suppression system, including localized gas detectors that were connected to the central refinery alarm. I used Corten A steel together with a 50mm rock wool thermal liner, thus even if a fire occurred next door, the structure would still be able to withstand it. The company remarked that the way their existing RJ45 CCTV network was incorporated was so simple that it had saved them a few weeks of setup time.
Testimonial: “In fact, the MEOX team went beyond just storage; they offered a comprehensive engineering solution at a high level. The combination of ExdII BT6 explosion-proof systems and the automatic fire suppression not only satisfied our safety auditors but also gave them complete assurance. We have found that the Corten A steel is highly resistant to the extreme conditions of our industrial atmosphere.”
—Dr. Zhang, Facilities Director, PetroGlobal Co., Ltd.
Case Study 2: Academic Research Hub
Location: Singapore
Time: October 2024
The Problem: The university had built up a large volume of hazardous biological and chemical waste, which couldn’t be stored in their usual brick-and-mortar lab buildings anymore, as the updated safety codes did not allow that.
The Solution: I brought a modular unit fitted with special explosion-proof UV disinfection lamps. I took great care to make sure the emergency shower and eyewash station installation perfectly met the 10-second “reachability” rule. This way, the university was able to safely remove hazardous waste in its internal labs while at the same time staying fully compliant with environmental laws on secondary containment and leak recovery.
Testimonial: “We had to come up with a modular solution that complied with the stringent new safety codes for hazardous waste. MEOX’s knowledge of the leak recovery system and the location of the emergency eyewash station, which is accessible within 10 seconds, was crucial to our meeting of the standards. UV disinfection lamps offer protection to our personnel at a level that traditional storage is simply not capable of.”
—Elena Tan, Safety Lead, Innovate University Labs
Fig. 5: Inside view of a Hazmat Storage Containers
To know more about the Dangerous Goods Container, visit our product page here.
The design of hazmat storage containers is an effective integration of metallurgical science, electrical safety, and green living. By transitioning dangerous substances to specially designed, shock-proof, and HVAC-controlled spaces, factories can go a long way in minimizing their risk exposure. It does not matter if you are handling chemical waste or volatile raw materials; the modular design of these containers delivers a versatile, expandable, and above all, safe system. Although MEOX continues to be a leading manufacturer of these kinds of storage solutions, the key elements of first-rate containment are without a doubt: strong materials, multiple safety features, and strict adherence to regulations.
Secure Your Operations with MEOX!
At MEOX, we specialize in transforming complex safety requirements into robust, turn-key hazmat storage containers.
Contact MEOX Engineering Support now.
What are the main requirements for a hazardous materials storage container?
A storage container that meets the requirements should have a sound structure, often made of Corten A steel to resist corrosion, and a Class A fire-resistant interior lining. Moreover, it must be equipped with an explosion-proof electrical system (ExdII BT6), an automatic fire suppression system (for example, a self-spraying dry powder system), and a secondary containment system capable of recovering chemical leaks.
How do explosion-proof ventilation systems work in chemical storage?
These systems perform a mixture of passive and active engineering. Passive intake vents have been equipped with SUS304 stainless steel fire dampers, which close automatically at 70°C to isolate the room from fire. Active ventilation is delivered by explosion-proof centrifugal fans and purification filters that ventilate and cleanse harmful vapours safely before they are released to the outside environment.
What safety features are required for personnel entering hazmat containers?
According to safety protocols, an emergency eyewash and shower unit must have a 15-minute continuous water supply and be located in such a way that it can be reached within 10 seconds. Moreover, a personal protection box with respirators and protective clothing should be included in the unit. Also, intelligent lighting logic is employed; when a door closes with a person inside, the lights go off to notify them of the necessity to use the fire escape door.
Disclaimer:
The technical data and materials in this article were taken from MEOX’s own manufactured containers; the specifications, materials, and technical data could be different depending on the particular project requirements and local regulatory changes.
Safety & Liability Disclaimer: Even though ZN MEOX hazmat containers are made to meet the high engineering standards stated above, conformity depends on the site. The user at the point of use has to carry out a formal DSEAR or Risk Assessment and must ensure that the location of the unit complies with local “set, back” distances and environmental zoning laws. Before commissioning a storage unit, always seek advice from your local Fire Marshal or a certified Health and Safety (EHS) professional.
Technical References & Further Reading:
U.S. Occupational Safety and Health Administration (OSHA): 1910.106 – Flammable Liquids Standard
National Fire Protection Association (NFPA): NFPA 30: Flammable and Combustible Liquids Code
UK Health and Safety Executive (HSE): Storage of Dangerous Substances (L135)
United Nations Economic Commission for Europe (UNECE): About the GHS Classification
