Several remote areas can benefit from an electricity supply, but the cumbersome and exorbitant process of extending the electrical grid or delivering diesel fuel is still required to do so. The solar container system is able to do this by utilizing a 20ft container which contains smarts, solar panels, and battery systems. This guide explains how the 20ft mobile solar container works, and how much it costs to run, and where it is most effective.

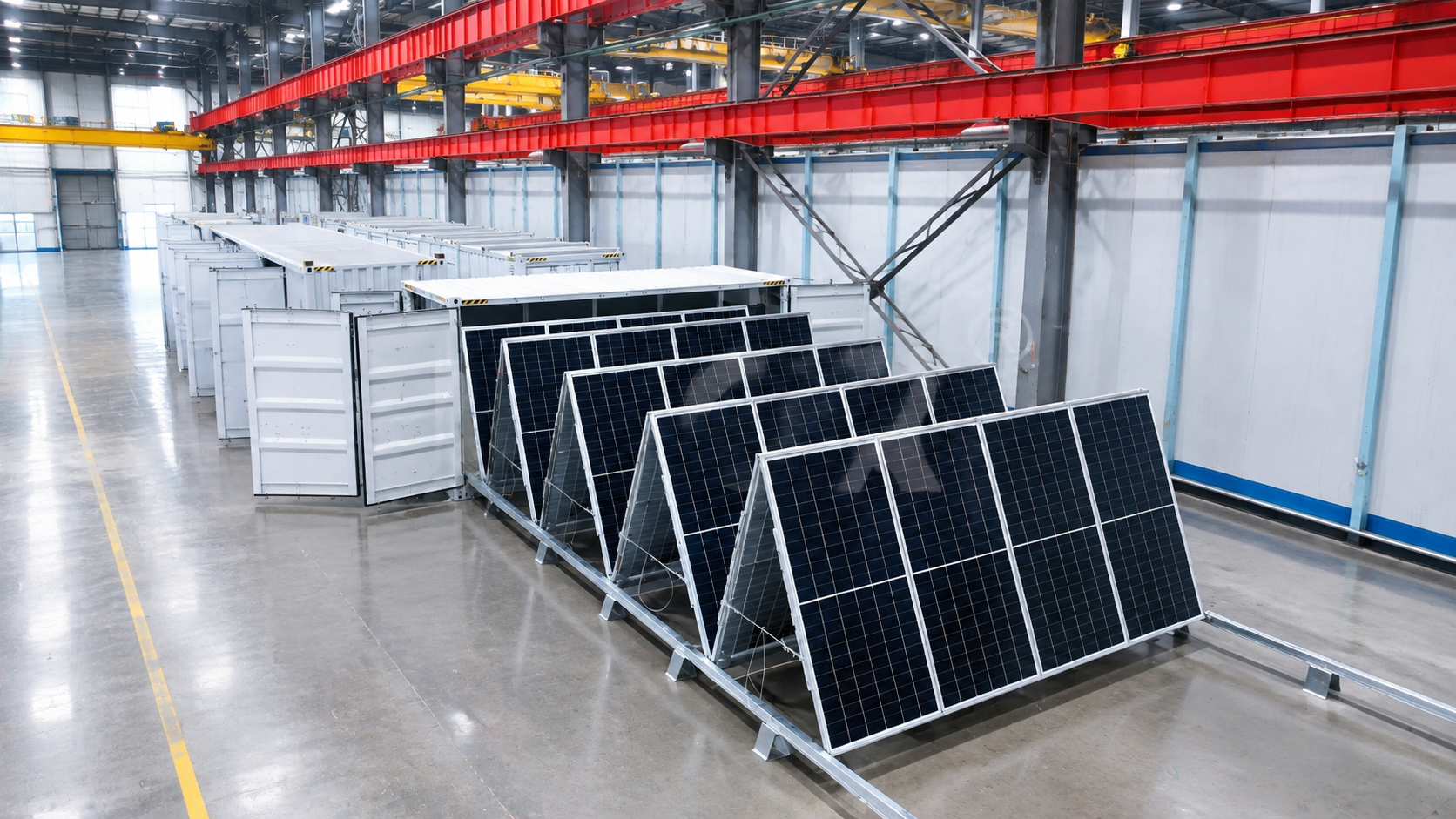

A 20ft containerized solar power unit is a manufactured solar power supply designed on the basis of a standard ISO container. During transport, solar panels are folded flat and then expanded on the site into an array of panels ready to generate electricity. The energy produced by the solar power system during the day gets stored in a rechargeable battery bank installed inside the container. A portable solar unit takes very little time to be put into operation by just placing it on an even foundation surface, as it comes pre-assembled and tested in the factory, leaving no further assembly required on the site before the solar power unit can start producing electricity.
The table below summarizes the core specifications of the standard 20ft mobile solar container.
| Specification | 20ft Solar Container |
| External dimensions (L×W×H) | 6,058 × 2,438 × 2,896 mm |
| Container weight | 3 tons (empty) |
| Solar array capacity | Up to 113 kWp |
| Panel type | N-type i-TOPCon, 590W |
| Module count | 192 |
| Folding/unfolding time | 120 / 80 minutes |
| Installation crew | 6 workers |
| Operating temperature | -30°C to +60°C |
| Certification | CE, TÜV-tested |
A smaller sibling, the 10ft mobile solar container, suits lighter loads such as single equipment sheds or small monitoring stations, while the 20ft version covers most commercial and industrial jobs on its own.
The folding panels open by themselves during the day and start converting the sun’s rays into electricity. This power can be used directly in machines and is also stored in an energy storage container or batteries. At night or when it is cloudy, the stored power is automatically used, and there is no sense of interruption for the user. When used together with a battery energy storage container, one 20ft container can provide a constant supply of energy for lighting, communication, and light machinery.
Off-grid electrification remains uneven: rural electricity access still trails urban access by a wide margin worldwide, which is one reason mini-grid and containerized solar deployments have grown quickly in remote regions, according to IRENA‘s guidebook on renewable energy for remote communities. Off-grid solar is also increasingly used to power mines, telecom towers, and agricultural equipment that sit far from any grid connection, as noted in the IEA‘s analysis of solar energy deployment.
| Factor | 20ft Solar Container | Ground-Mounted PV | Diesel Generator |
| Setup time | About 2 hours | 1–2 weeks | Immediate, but needs fuel logistics |
| Mobility | Fully relocatable | Fixed installation | Relocatable |
| Ongoing emissions | Zero | Zero | High |
| Labor to install | 6 workers | Large crew, civil works | Minimal |
A 20ft solar container is not always cheaper up front than a small diesel unit, but it removes recurring fuel costs, and it deploys far faster than a fixed ground-mount array.
Location: Cebu, Philippines
The Challenge: The coastal region of Cebu, Philippines experienced a power outage due to a cyclone, which destroyed the power supply systems for the emergency hospitals and communication centers. The setting up of diesel generators by road was slow since the oil supply routes had been disrupted.
The solution: MEOX delivered two 20ft solar containers to the disaster area, and both units were fully functional within six hours. They were used around the clock for over three weeks and were powered continuously without refueling, enabling the medical services and coordination team to operate successfully.
Testimonial:
“During typhoon recovery, the mobile solar container provided critical power for medical tents and communication equipment. The plug-and-play design allowed our team to deploy it within hours. Zero maintenance and silent operation made a huge difference in the field.”
— Maria, Emergency Response Lead, GlobalAidame, Cebu
How much power can a 20ft solar container generate?
A standard unit produces up to 113 kWp from 192 panels, enough for temporary camps, mobile equipment, remote offices, or emergency facilities, depending on load.
Can a 20ft mobile solar container supply power at night?
Yes. The battery bank works by charging through excess daytime energy which is used at night or when the weather is cloudy so that the power supply is reliable.
How long does it take to set up a 20ft solar container on-site?
A trained crew of six can unfold and commission a unit in about two hours once it reaches the site, with no permanent foundation required in most locations.
Disclaimer
The technical information, specifications, and cases in this article are dependent on the container products made by MEOX. The real specifications, materials, and technical information could differ from project to project and are subject to change; hence, confirm the current specifications before making any purchases.
A twenty-foot solar container transforms the engineering of power installations from months to same-day deployment. If you are in need of a mobile renewable energy source at your location, reach out to MEOX’s engineering team for assistance with selecting and designing the appropriate system based on your site conditions and load requirements.
