Water Tightness Tests for Special Containers are a critical quality inspection method used to simulate natural rainfall and verify whether the unit is fully sealed against water intrusion. By using a controlled spray system to reproduce heavy downpour conditions, this process evaluates the sealing performance of every structural component and identifies any leaks, seepage, or moisture ingress before the container is delivered.
This is especially important because special containers are often used in demanding outdoor environments. Without proper sealing, rainwater can enter the unit and cause equipment failure, electrical short circuits, corrosion, and other serious risks. That is why Water Tightness Tests for Special Containers are not just a quality check, but a key safeguard for operational safety and service life.

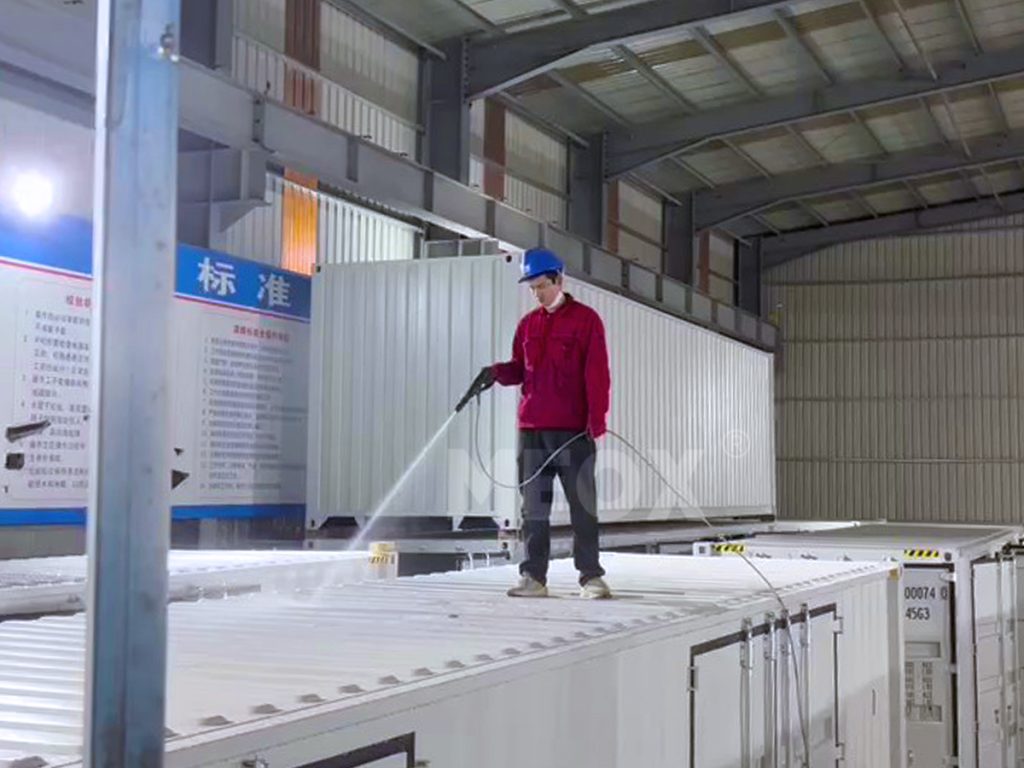

Comprehensive Inspection: Eliminating Every Potential Leak Risk
A thorough Water Tightness Tests for Special Containers procedure focuses on the areas most vulnerable to water penetration, ensuring no blind spots are missed.
Roof and top side rails:
All roof panel joints, top corner castings, ventilation covers, and other key connection points are carefully inspected to remove leakage risks from the most exposed areas.

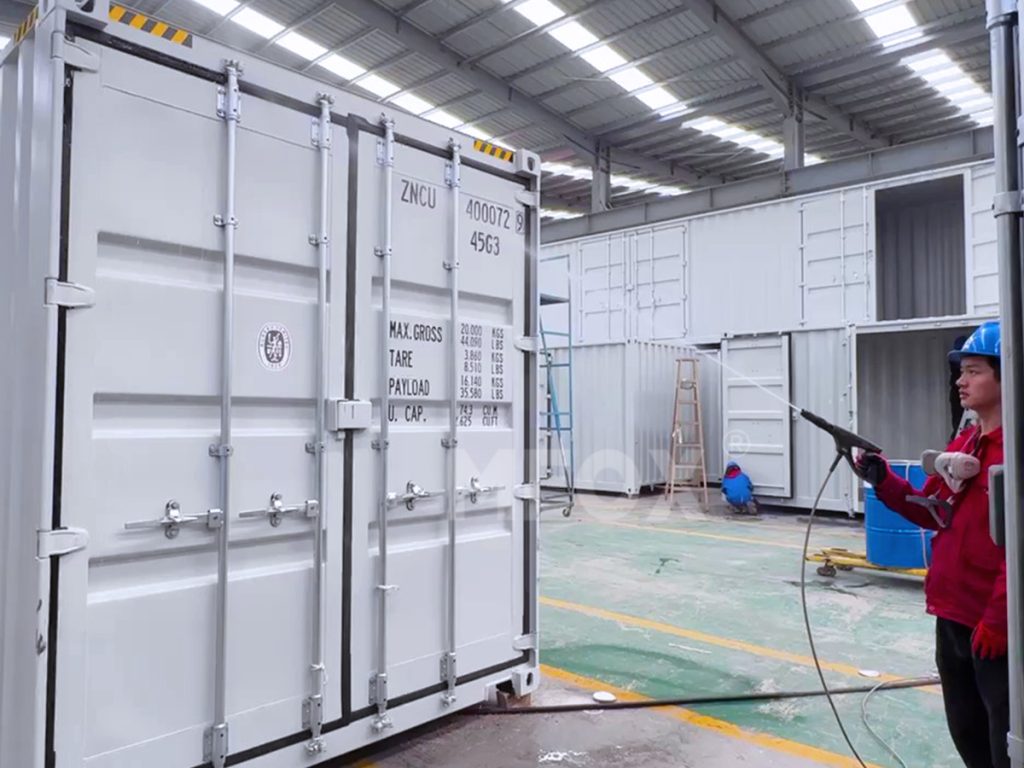

Container doors and sealing system:
As one of the most important inspection points, the full perimeter of the door gasket is checked for airtight and watertight integrity. Special attention is paid to the lower door sill and hinge areas, which are common leakage points. The goal of Water Tightness Tests for Special Containers is to confirm there are no drips, seepage, or continuous water flow.
Side walls and front panel:
Panel seams, rivets, weld points, and even nameplate installation areas are thoroughly examined. During Water Tightness Tests for Special Containers, no gap is considered too small to ignore.
Bottom structure:
The base is also checked for abnormal water ingress to protect both watertightness and overall structural integrity.
Throughout the process, leaks, seepage, and moisture intrusion are precisely identified to ensure zero hidden risks.

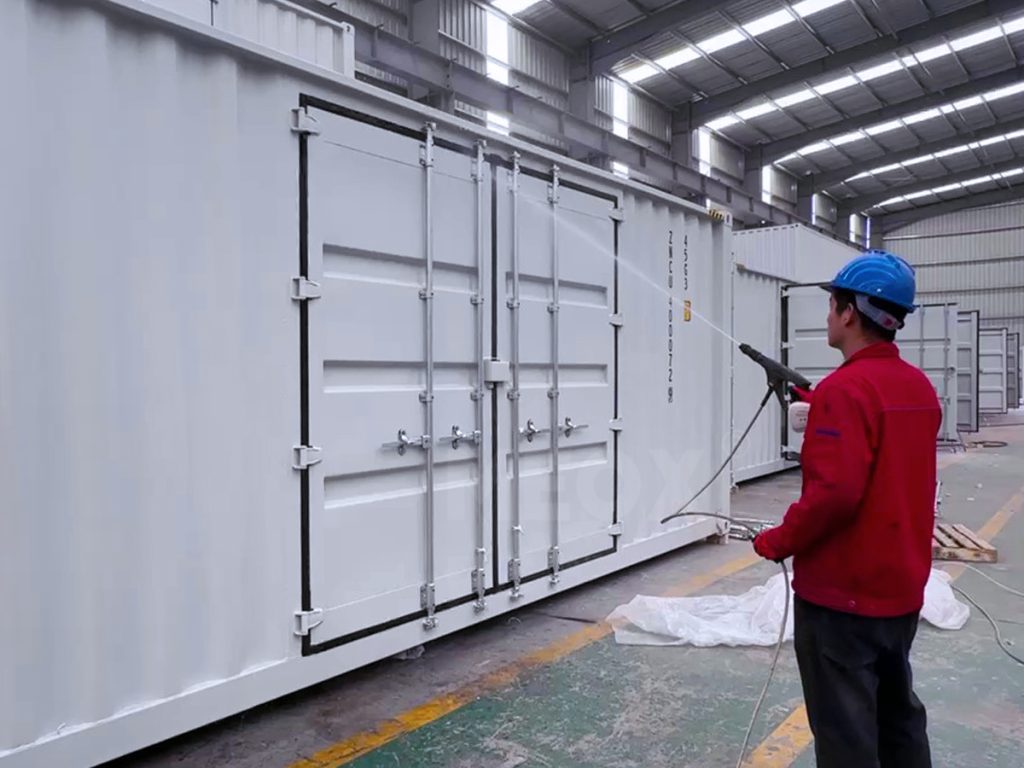

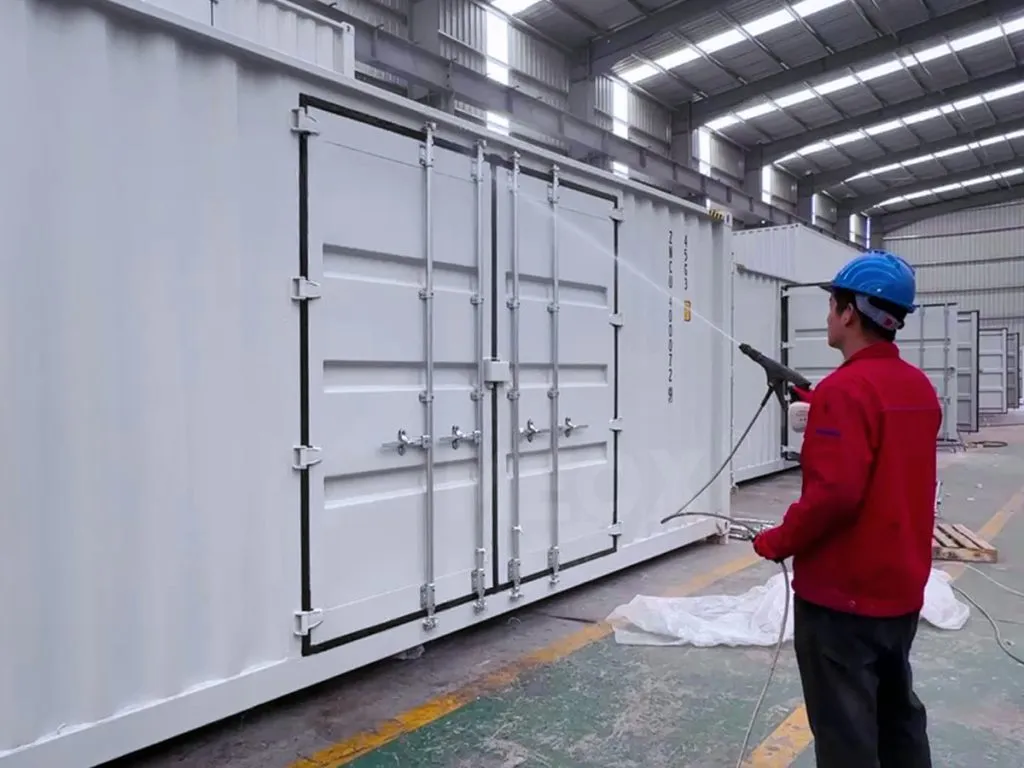

Professional Equipment: Accurate and Reliable Results
Reliable Water Tightness Tests for Special Containers depend on advanced equipment and stable testing conditions.

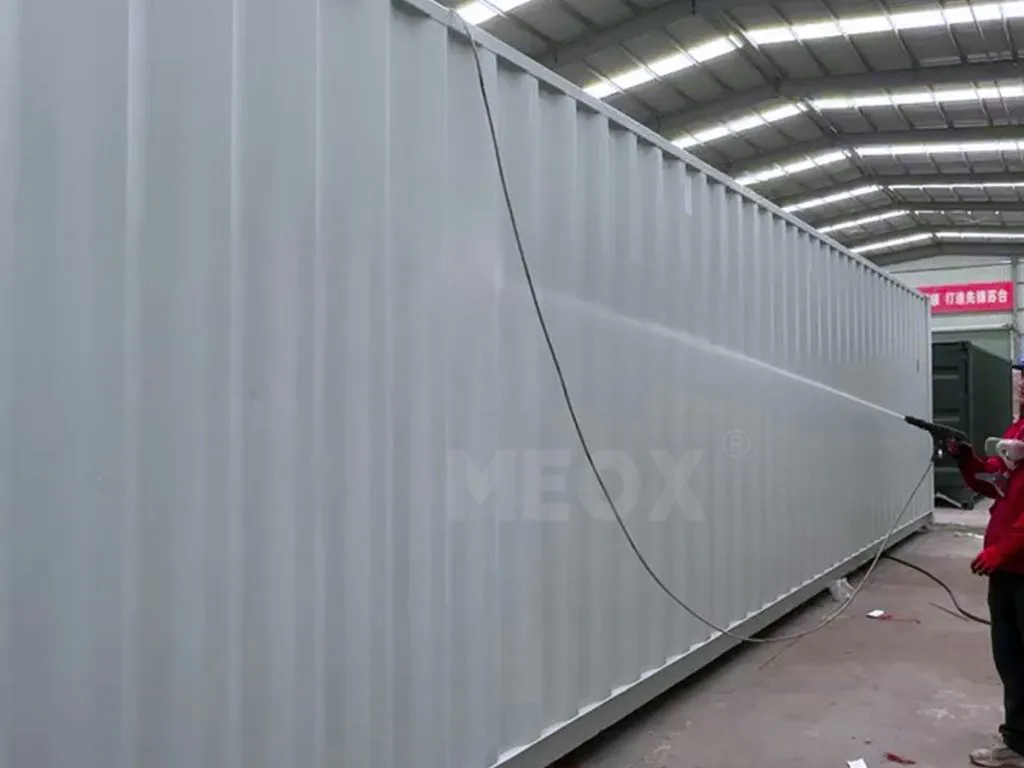

Full-coverage spray system:
The container roof and all four sides are sprayed evenly without dead angles, meeting IPX5/IPX6 waterproof testing requirements when needed.
Intelligent monitoring and control system:
Spray pressure and flow rate are automatically set and monitored, with real-time data recording to reduce human error and improve repeatability.
Supporting inspection tools:
High-intensity waterproof lighting helps inspectors detect even subtle leakage traces inside the container. An adjustable gantry system accommodates container lengths from 5 to 12 meters, while ladders and waterproof marking tools improve precision and efficiency during Water Tightness Tests for Special Containers.
Standardized Procedure: Every Step Strictly Controlled
A fixed and rigorous workflow ensures consistent results for every inspection.
Precise positioning:
The container is securely fixed in the test station, with doors fully locked to prevent movement during testing.
Scientific parameter setting:
Spray parameters are configured according to recognized testing standards, simulating extreme rainfall conditions of 100 mm per hour.
Sustained spray testing:
The system runs for no less than five minutes to ensure a complete evaluation of sealing performance.
Detailed internal inspection:
After spraying, inspectors enter the container and systematically examine the inner walls, seams, corner fittings, and all critical areas.
Standardized documentation:
Any leakage points are marked and recorded by location and pattern. After drainage and drying, a complete inspection report is compiled and archived.
At MEOX, we have established a strict Water Tightness Tests for Special Containers system built on comprehensive coverage, professional-grade equipment, and standardized procedures. Every detail is carefully controlled to ensure superior sealing performance.
We can also provide third-party inspection reports, helping ensure compliance, traceability, and reliability of test results.
Rigorous Water Tightness Tests for Special Containers are not only a benchmark of container quality, but also a commitment to operational safety. They form the first line of defense, ensuring stable and reliable performance for every specialized container we deliver.
