Industry Background and Development Status of Multi-Energy Complementarity
Multi-energy complementarity gains momentum globally. It blends solar, wind, and storage. It balances resource variability. It ensures a stable supply. It reduces environmental impact. It protects natural resources. It advances sustainable cycles. The policy support grows. New technologies emerge. Storage and the smart grid improve performance.
China leads in multi-energy complementarity. Its projects focus on solar‑wind and wind‑hydro synergy. The bid volume surpassed CNY 30 billion in 2022. Investment continues to expand. The concept of a mobile solar system integrates well. Future growth remains strong. With continued policy backing, the industry outlook is bright.
In remote areas, energy costs reach $0.50 per kWh. A movable solar system model cuts this to $0.18. By adopting a containerized, plug‑and‑play design, deployment time shrinks from 6–12 months to days. Users gain instant access to reliable power. Communities benefit from lower energy bills and faster setup. The mobile solar system addresses urgent demand with flexible scalability.
As the multi-energy complementarity sector evolves, beneficiaries range from rural clinics to off‑grid enterprises. The movable solar system model meets diverse needs with stable output and easy relocation. It drives efficiency, reinforces stability, and supports sustainable development. This model sets a new standard for rapid, cost‑effective power solutions worldwide.
Photovoltaic energy storage system under multi-energy complementarity

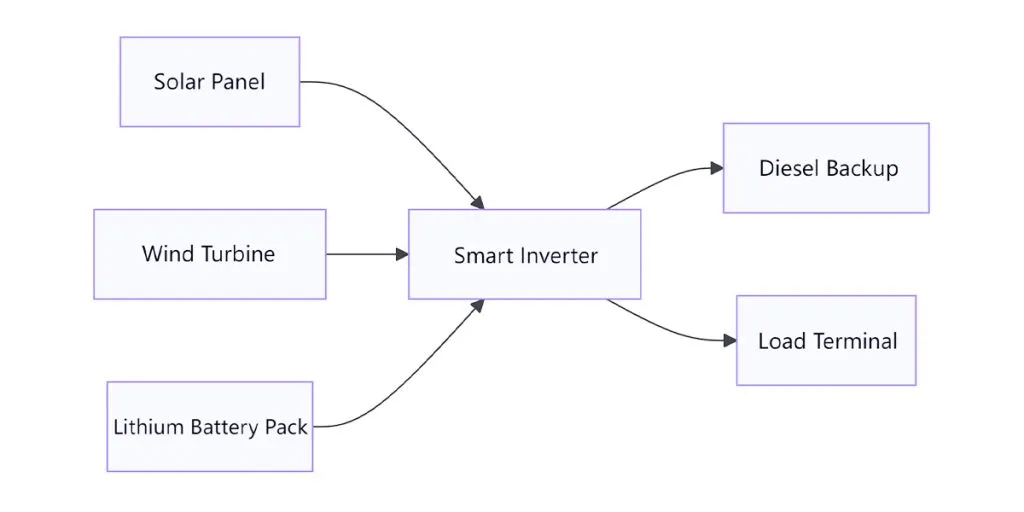

A movable solar system model integrates solar panels, wind turbines, and battery storage into a unified unit. The model captures sunlight and converts it to electricity. It uses wind power as a supporting input. It stores surplus energy in batteries for later use. An intelligent control system monitors demand and supply. It automatically shifts between sources. It prevents power shortages and overloads. The mobile solar system concept enables rapid deployment. It reduces installation time and cost. It delivers reliable energy in remote areas. This movable solar system model offers a flexible and efficient path to stable, sustainable power.
Functional Design
1. Energy Conversion Function
The energy conversion function uses a disturbance observation method. It performs iterations every 0.5 seconds. It tracks the maximum power point of the solar array. A microcontroller adjusts PWM duty cycles in real time. It responds to voltage and current changes. A DC‑to‑AC converter uses an improved SVPWM algorithm. It runs on a dedicated microcontroller. It improves inverter efficiency and output quality. This movable solar system model keeps the array near peak power. This mobile of solar system design maximizes energy harvest.
2. Stable Power Output Function
The stable power output function has two parts. First, it provides power compensation. A prediction algorithm forecasts solar output and load demand. It uses historical weather data and load curves. It applies time‑series analysis models. It triggers battery discharge when solar input is low. It stores excess energy when input is high. Second, it offers dynamic load balancing. The system adjusts charge and discharge strategies in real time. It responds to solar output, storage status, and grid needs. This ensures consistent power delivery. It makes the movable solar system model robust in variable conditions.
3. Intelligent Charge-Discharge Management
The system auto‑regulates charging current. It monitors battery state of charge (SOC) and temperature. It adjusts the current to extend battery life. It raises the charging current when the SOC falls below a set threshold. It reduces the current when the SOC is sufficient. The design schedules smart charging times. It analyzes weather forecasts and load predictions. It charges batteries during peak solar hours. It shifts charging to off‑peak periods when beneficial. This mobile of solar system control optimizes energy use. It maintains battery health. It ensures readiness for future demand.
4. Real-Time Status Monitoring
The monitoring system tracks key parameters continuously. It measures array voltage, current, and battery temperature. It uses high-precision sensors and Kalman filters. It transmits data wirelessly to a central controller. It filters noise for accurate readings. It also monitors storage status. It tracks SOC, temperature, and cycle count. It evaluates battery health and predicts remaining lifespan. This movable solar system model keeps operators informed. It sends alerts when parameters exceed limits. It supports preventive maintenance. The mobile solar system monitoring ensures long-term reliability.
Hardware Design
1. Photovoltaic Array Module
The photovoltaic array uses polycrystalline silicon panels. The design arranges panels in series and parallel. Series connections raise voltage. Parallel connections increase current. A matrix layout adapts to site conditions. The movable solar system model adjusts the array based on light levels. It maintains peak power tracking. A dedicated MPPT controller sits in each unit. It reads voltage and current every 0.5 seconds. It tweaks PWM signals. The mobile of solar system concept allows quick swapping of arrays. It reduces on-site labor. It speeds up commissioning. Operators appreciate the rapid setup of this movable solar system model.
2. Energy Storage Battery System
The system selects lithium-iron phosphate batteries. These cells offer high energy density and long life. Each battery pack includes a Battery Management System (BMS). The BMS monitors voltage, current, and temperature. It balances cell charging. It protects against overcharge and deep discharge. The movable solar system model integrates battery racks inside a container. It uses plug‑in connectors. This mobile of solar system design allows users to upgrade capacity easily. It also simplifies transport and replacement.
3. Smart Grid-Tie Inverter
The inverter handles DC- to -AC conversion. It supports three-phase grid connection. It delivers up to 98.6% conversion efficiency. It uses an advanced SVPWM algorithm. It manages power quality. It monitors grid voltage and frequency in real time. It adjusts output to meet standards. A built-in communication module supports multiple protocols. Users can link the inverter to a SCADA system. The movable solar system model features a slide‑out inverter tray. The mobile solar system approach makes maintenance fast. It minimizes downtime. It ensures continuous power flow.
4. Energy Management Control Unit (EMCU)
The EMCU uses a high-performance microprocessor. It collects data from the PV array, battery, and inverter. It runs optimization algorithms. It balances generation and demand. It schedules charge‑discharge cycles. It supports Wi-Fi and 5G communication. Remote monitoring and diagnostics run through a cloud platform. The movable solar system model embeds the EMCU in a secure control cabinet. The mobile of solar system design lets technicians swap the entire unit if needed. It enhances serviceability. It ensures long-term reliability.
Actual Project Case
The World’s Largest Single-Unit Hydro-Solar-Wind Multi-Energy Complementary Power Generation Base
This actual project case presents a movable solar system model in China’s Hainan province. The region has rich solar and wind resources. The movable solar system model integrates water, wind, and photovoltaic energy. It sits in a large solar industry park. The base offers 1,000 MW of PV power capacity. This is the largest single-unit hydro‑PV‑wind complementary power station. The project uses large‑scale intelligent dispatch and joint control technology for wind, water, and PV generation. It feeds one million kWh per hour of clean power into the grid.
The project also includes a 20 MW energy storage demonstration base. The movable solar system model uses five categories of batteries across 18 PV sub‑arrays. Each sub‑array varies in form, capacity, and operation. The mobile solar system units can dispatch power smoothly during peak and off‑peak periods. The mobile solar system design simplifies maintenance and trial selection.
This demonstration raises PV power quality. It ensures rapid compensation between hydro and PV output. It fills a gap in domestic large-scale hydro-PV complementary technology. It achieves internationally leading results. It lays a foundation for future coordination of wind, water, and solar control systems. The movable solar system model enhances grid stability and energy quality. It guarantees minimal wind and solar curtailment. The success of the movable solar system model shows China’s technical leadership. The mobile solar system approach will guide global multi-energy complementary projects.
European Pilot: Balearic Islands Off-Grid Multi-Energy Hub
In 2024, a European demonstration deployed a movable solar system model on Menorca Island to support a remote microgrid combining solar, wind, and marine current turbines. Housed in modified 20‑ft containers, each unit features fold‑out solar arrays and a mobile solar system control module that integrates real-time meteorological data. During summer peak loads, the system delivers up to 200 kW of clean power, while lithium‑iron phosphate batteries store surplus energy for cloudy days and calm nights. An intelligent energy management algorithm automatically prioritizes solar and wind inputs, then seamlessly switches to stored power when generation dips below demand.
This pilot reduced diesel generator usage by 85%, cutting annual CO₂emissions by 120 tonnes. Installation time for each containerized unit was under 48 hours, thanks to plug‑and‑play electrical and data connectors. Local utility operators lauded the rapid deployment and flexible relocation capabilities. The success of this movable solar system model highlights how a mobile solar system approach can be tailored for European island grids, delivering reliable, sustainable energy in off-grid communities.
