The importance of cold chain logistics has been growing day by day. It is the exact temperature control during the transport of goods that may either allow the delivery to be successful or cause the entire cargo to get spoiled – this applies to fresh food as well as pharmaceutical products. A 40FT reefer container is the core of this issue. It is a specially refrigerated container that is currently the main mode of transportation worldwide for temperature-sensitive goods.
This article provides details about how the 40ft Reefer container will operate, its main characteristics, some examples of where they are typically used, and finally some tips for purchasing.

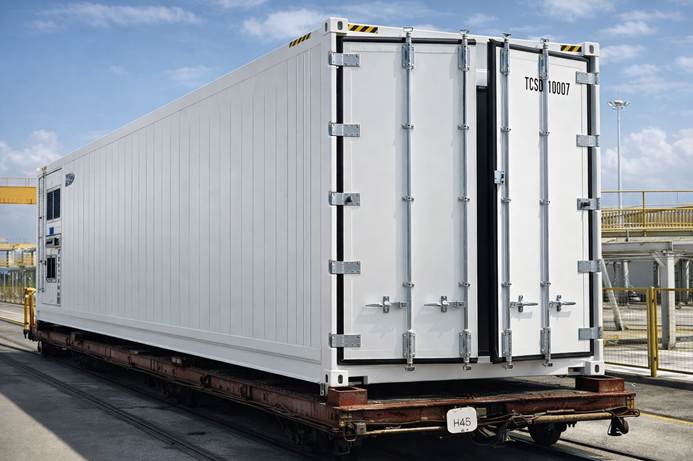

A 40ft reefer container is a refrigerated intermodal container of approximate length 12.19 meters. It is first and foremost used to transport goods necessitating a controlled atmosphere. A reefer unit varies from a simple dry container in that it is insulated on all six sides and houses a mechanical refrigeration system.
The container can easily be attached to trailers for long-distance transportation by road, rail, or sea. Also, due to its modular design, it can be used as a refrigerated warehouse unit when multiple containers are placed together without the need for each individual unit to have its own refrigeration system.
Reefer containers are made following international standards like ISO CSC UIC, and TIR, and are certified by well-known classification societies like BV ABS LR, and CCS.
The technical parameters will guide buyers and logistics planners to select the right unit for their cargo requirements.
| Parameter | Specification |
| External Dimensions (L×W×H) | 12.192m × 2.438m × 2.896m |
| Internal Dimensions (L×W×H) | 11.588m × 2.294m × 2.554m |
| Internal Cubic Capacity | 67.9 m³ (2,397 cu.ft) |
| Door Opening (W×H) | 2.29m × 2.261m |
| Max Gross Weight | 34,000 kg |
| Gooseneck Tunnel (L×W×H) | 3.174m × 1.029m × 0.12m |
| Component | Insulation Thickness |
| Roof | 80mm |
| Side Plates | 80mm |
| Door | 76mm |
| Floor | 76mm – 110mm |
The multi-layer insulation design is critical to maintaining a stable internal temperature under different ambient conditions, particularly when shipping across transoceanic or desert routes.
Picking the brand of refrigeration for a 40ft refrigerated container is really one of the key buying decisions. Three top brands are usually fitted:
The International Institute of Refrigeration reports that refrigerated transport makes up about 15% of the total global freight volume. Along with the pharmaceutical and food export industries, demand for this type of transport is growing each year.
The refrigeration unit chosen must be compatible with the type of cargo, the conditions of the route and the desired temperature range. Each of the three brands referred to above can operate in lots of temperatures, normally -30°C to +30°C, which includes fresh produce, frozen goods and industrial materials that are temperature sensitive.
The 40ft format offers several structural advantages over smaller reefer units or refrigerated trucks:
The use of stainless steel and aluminum alloys allows to keep the tare weight on a competitive level, with no loss of structural integrity, even under stacking loads.
Internal capacity of 67.9 m³ allows for high-volume freight, cost-effective at high-volume perishable freight.
Containers can be assembled on trailers for door-to-door delivery, shipped by ocean freight, or even used as modular cold storage units.
When several units are combined in a refrigerated warehouse, one external refrigeration connection can supply a number of containers, this way drastically cutting down on energy costs.
The 40ft reefer container is used across numerous sectors. The table below highlights the main applications and their standard temperatures.
| Industry | Cargo Type | Typical Temp Range |
| Food & Beverage | Fresh produce, dairy, meat | 0°C to +4°C |
| Frozen Foods | Ice cream, frozen seafood | -18°C to -25°C |
| Pharmaceuticals | Vaccines, biologics | +2°C to +8°C |
| Chemical Industry | Temperature-sensitive reagents | Varies by product |
| Floriculture | Cut flowers, bulbs | +2°C to +5°C |
The pharmaceutical cold chain is one of the fastest-growing market segments. The World Health Organization estimates that as much as 25% of vaccines reach their destination spoiled because of poor cold chain management. Reliable reefer containers with stable temperature control are directly involved in mitigating this issue.
Client: A Vietnamese seafood exporter based in Ho Chi Minh City
Location: Ho Chi Minh City, Vietnam → Jebel Ali Port, Dubai, UAE
Project Date: March 2024
The customer wished to move the fresh shrimp and fish fillets by sea in 22 days from Ho Chi Minh City to Dubai. Earlier, there were some issues with cargo temperature changes during transfers from vessel to truck at intermediate ports which caused partial spoilage and customer complaints. The standard reefer rentals from the port operators were providing units of a random age with no reliable maintenance history. The customer was after a reliable long-term solution and not after a temporary rental fix.
In March 2024, the client contacted MEOX to place a custom order for new 40ft refrigerated containers, which are to be produced at MEOX’s factory in Suzhou, China. Three units were constructed based on ISO and CSC norms, and each was equipped with Carrier refrigeration units and 80mm insulated panels on roofs and side walls. MEOX’s production team arranged shipment to Cat Lai Port, Ho Chi Minh City, with the lead time being 28 days from order confirmation. Before loading, the containers were precooled to -18°C, and maintaining the same thickness of insulation for roof, walls, and doors helped in reducing temperature differences during the multi-modal transportation. Being SOC (Shipper Owned Containers), the client was able to have complete control over maintenance planning as well as pre-trip inspections at each port of call.
Temperature data for all containers at Jebel Ali Port fell within the regulated range. Then, the customer expanded to eight MEOX units for their regular export cycles, and as a result, they were able to reduce the cold chain cost per shipment by approximately 18%.
MEOX delivered exactly what we needed — reliable units, on time, with zero cold chain issues on every Dubai shipment since.
— Nguyen Thi Lan, Export Operations Manager, Mekong Fresh Seafood Co., Ltd., Ho Chi Minh City
Can the 40FT reefer container be used as a static refrigerated warehouse?
Yes. Several units can be combined to work as a modular cold storage facility. In such a setup, not all containers will require a separate refrigeration unit a common external system can be used to keep the temperature stable for a group of connected containers, which will decrease both the initial investment and running costs.
Are these containers accepted by major shipping lines?
Yes. Containers that are certified to ISO CSC UIC and TIR standards and are recognized by BV, ABS, LR, or CCS are accepted by international shipping carriers. Buyers should check the certification paperwork before making the purchase decision.
Can the color, branding, and logo be customized?
Yes. Color and exterior branding can both be adjusted. This is typical mostly for fleet operators who want to maintain a consistent corporate livery for their container assets. Also, it happens when companies use containers in client-facing environments, like on-site temporary storage.
A 40ft reefer container is far more than just a cold storage box; it is a sophisticated logistics tool. Its features of large effective capacity, guaranteed insulation performance, and the ability to interface with top refrigeration brands allow it to be the most adaptable vessel for temperature-sensitive cargo in large quantities.
Regardless of whether you are transporting frozen fish via sea routes, distributing drugs within several markets, or setting up cold storage modular units at an isolated location, the 40ft reefer container will provide a reliable and cost-effective basis. Besides, having units on hand rather than renting ones not only gives operators control over the quality of maintenance, pre-trip inspections, and the long-term cost of the shipment but also increases their certainty about the whereabouts of their money.
The rapid growth in global cold chain demand means that setting up the right refrigerated container infrastructure is not just a logistics decision; it is a strategic decision that can set you apart from your competition.
Are you planning on using a 40-foot refrigerated container for cold chain logistics, pharmaceutical distribution or modular cold storage? If so, then MEOX is the ultimate choice when it comes to installing Carrier, DAIKIN or Thermo King refrigeration systems within your refrigerated container.
Contact MEOX for specifications, pricing, and lead time information.
Disclaimer: All information about technical data, materials and sizes mentioned in this article relates to container products manufactured by the MEOX factory. The real specifications, brand names of components, and materials used may differ according to the client’s custom requirements and production updates.
To see a 40ft refrigerated container fresh from the production line, watch the following factory showcase video:
