A 40HQ container size is one of the most useful container specifications in global shipping. Many buyers choose it because it offers more vertical space than a standard 40-foot container. This extra height can make a real difference in cargo planning, storage, and loading efficiency.

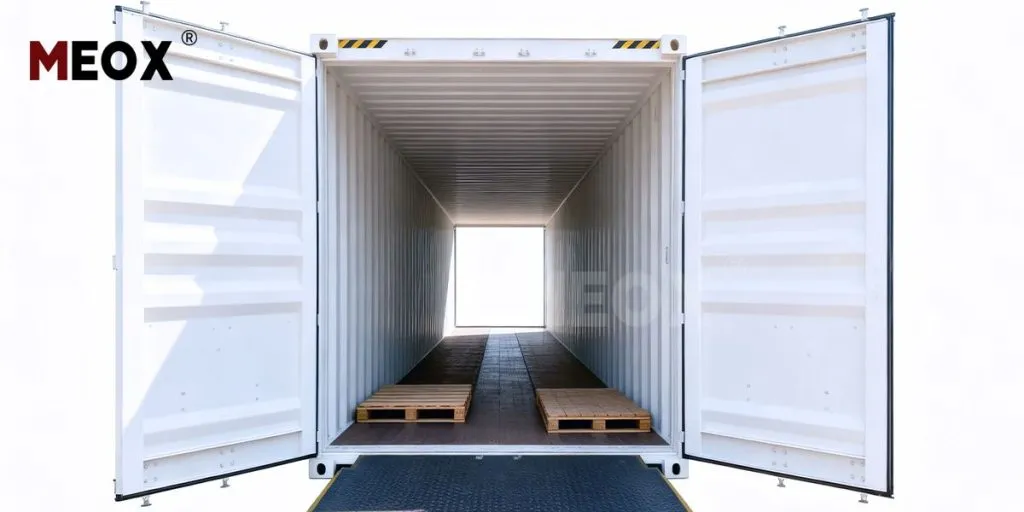

What Is 40HQ Container Size?
A 40HQ container refers to a 40-foot high cube container. The term “HQ” means high cube. A standard container usually has a maximum height of 2,591 mm, or 8’6″. In comparison, a high-cube container is 2,896 mm, or 9’6″, tall. This extra height is the main reason the 40HQ container size offers more usable space than a standard 40GP container.
Many high-cube containers are 40 feet long. Some are also made as 45-foot containers. In addition, many lashing rings are mounted on the front top-end rail, bottom cross member, and corner posts. These lashing rings can usually bear loads of up to 1,000 kg.
40HQ Container Size vs 40GPContainer Size
| Item | 40GP (40′ Standard) | 40HQ (40′ High Cube) |
| Overall dimensions | 40′ × 8′ × 8’6″ | 40′ × 8′ × 9’6″ |
| Internal dimensions (L × W × H) | 12,032 × 2,350 × 2,393 mm | 12,032 × 2,350 × 2,697 mm |
| Door opening (W × H) | 2,340 × 2,274 mm | 2,340 × 2,577 mm |
| Volume | 67 m³ / 2,366 ft³ | 76 m³ / 2,684 ft³ |
| Maximum gross weight | 32,500 kg | 32,500 kg |
| Maximum payload | 28,800 kg | 28,620 kg |
| Tare weight | 3,700 kg | 3,880 kg |
In most cases, the container is about one foot taller than a regular 40GP container. That extra height creates more internal volume.
This is why the 40HQ container size is often preferred for goods that are light but take up a lot of space. It gives shippers more flexibility during loading. It also helps reduce wasted space above the cargo.
Why 40HQ Container Size Is Different from Standard Containers
The main difference between the 40HQ container size and a standard container is height. The floor area is almost the same. The width is also similar. But the extra vertical space changes how the container can be used.
This is important in many shipping situations. Some products cannot be stacked too low. Some cargo needs more headroom. Some projects require better use of cubic space. In all these cases, the 40HQ container size offers a clear advantage.

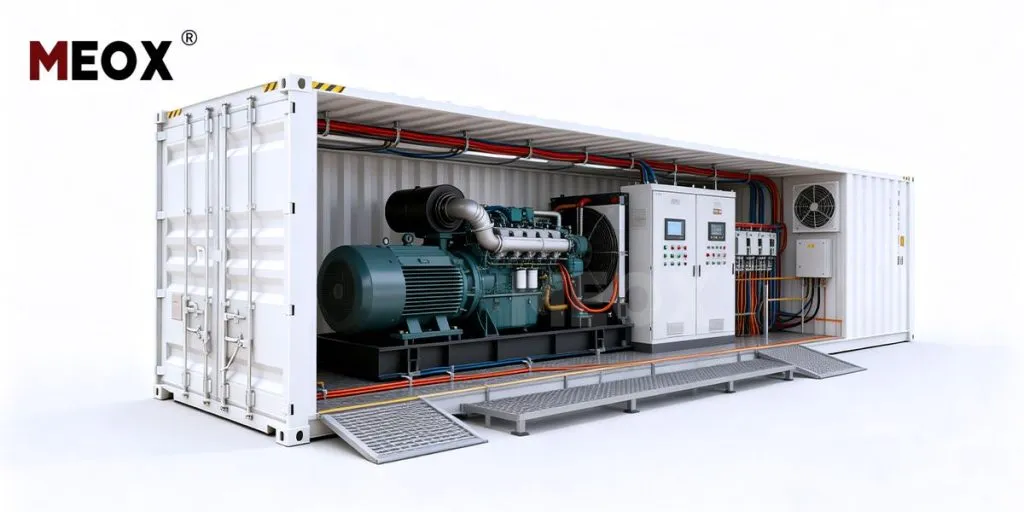

Customized 40HQ Container Size
A 40HQ container size is not always fixed in every project. Different brands and manufacturers may have slightly different specifications. These differences can affect internal dimensions, door opening, structural details, and even loading performance. For most general cargo, the standard size is enough. However, some applications need a more precise solution.
In real projects, container size is not only about length, width, and height. It is also about size capacity and loading space. A few millimeters may seem small. But in practice, they can affect cargo arrangement, equipment installation, insulation layout, and door access. They can also influence how much usable space remains after internal fittings are added. That is why customized 40HQ container size becomes important in many applications.
Customization is especially useful when the container will be used for special equipment, modular buildings, power systems, or industrial storage. In these cases, the container must match the actual function of the project. A standard container may not give the best result. A customized design can improve space utilization. It can also make loading and installation easier. More importantly, it can help avoid later modifications that may reduce performance.
At MEOX, we can customize the container size according to your specific requirements. We can adjust the structure based on your application, cargo dimensions, and internal layout needs. This approach gives you a better fit from the beginning. It also improves long-term reliability.
Compared with post-modification, customization is usually a better choice. A factory-made customized container can better meet the required anti-corrosion coating level. It can also better match the load-bearing structure needed for the project. This is important for outdoor use, harsh environments, and equipment with heavy loads. When the design starts from the correct size, the final container is usually safer, stronger, and more durable.
Key Decision Factors for Choosing the Right 40HQ Equipment Container
Structure Fit for Your Equipment
The 40HQ equipment container should match the size and layout of the equipment it carries. The internal space should support installation, operation, and maintenance. It should also allow enough room for cables, ventilation, and access points. A proper structure helps the equipment work in a stable and efficient way.
Load-Bearing Capacity Standard
The container should meet the full weight requirement of the equipment system. This includes the main machine, internal components, and any supporting parts. A well-designed load-bearing structure helps prevent deformation during long-term use. It also improves safety and reliability in daily operation.
Anti-Corrosion Coating Level
Different projects need different coating standards. For some applications, a basic protection level may be enough. For harsher environments, higher-grade protection is necessary. In general, coating systems can be selected from C5 to CX, depending on the working conditions. This gives the project more flexibility and helps the equipment container last longer in humid, coastal, or industrial environments.
At MEOX, the 40HQ equipment container can be customized according to these specific requirements. The final design should always depend on the actual equipment, load, and environment.

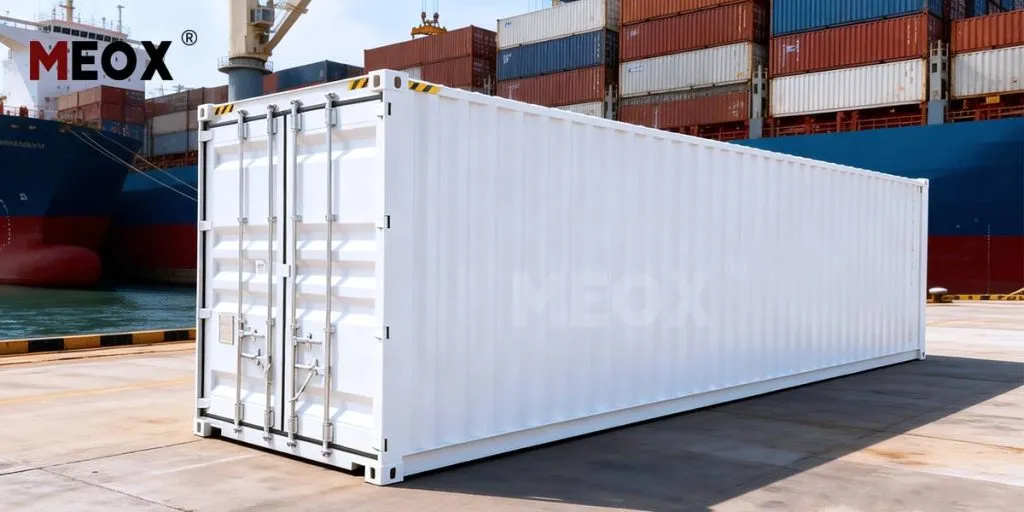

Optimize Loading Layout in 40HQ Container Size
A smart layout can improve the performance of a 40HQ equipment container. The equipment should be arranged to support stable weight distribution. Heavy components should stay in lower positions. Lighter systems can be placed higher when the design allows it.
Space planning is also important inside an equipment container. The layout should leave room for operation, inspection, and future maintenance. In many projects, the 40HQ container size makes this easier because it offers more internal height. This is one reason why engineers often prefer it for modular equipment integration.
Is 40HQ Container Size the Right Choice?
The 40HQ container size is a practical and efficient shell for equipment integration. Its main advantage is height. That extra height gives more room for internal installation, cable routing, maintenance access, and ventilation design. It also helps engineers arrange equipment in a more organized way.
For power systems, generator sets, control equipment, and other industrial units, the 40HQ container size can provide a strong structural base. It is often used as an equipment container because it can carry complex systems without wasting space. The container body also offers a stable enclosure for protection, noise reduction, and outdoor operation.
At MEOX, we can customize the 40HQ container size according to the equipment layout and project requirements. In this sense, the 40HQ container size is not only a space solution. It is also a structural solution. When a project needs enough internal height and a reliable enclosure, the 40HQ container size is often the right choice.
