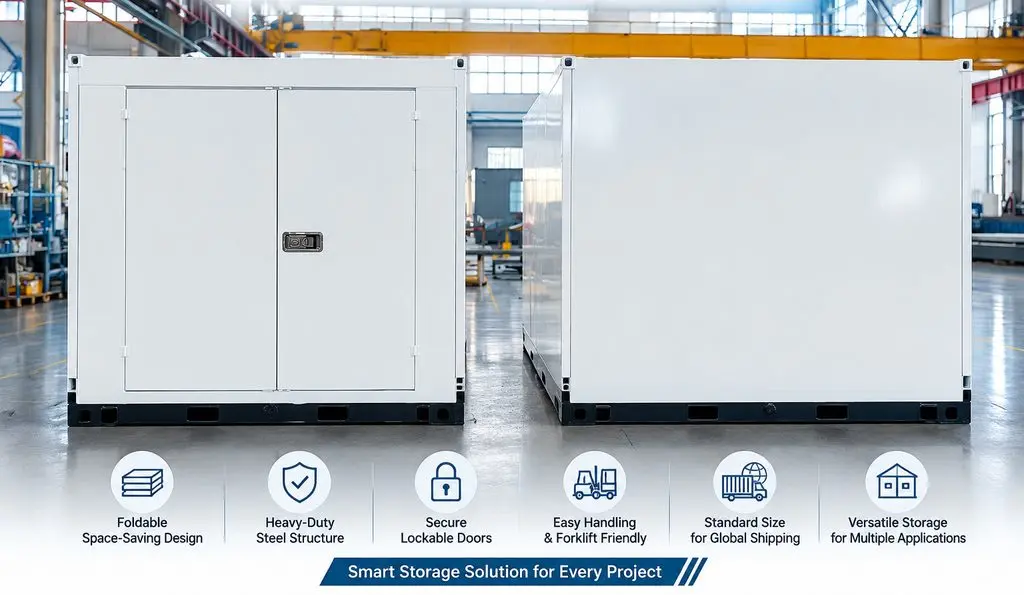

What Is a Foldable Steel Storage Container?
A folding steel storage container is a strong, durable storage container made of galvanized steel and designed to collapse to a flat state when not in use. It can be transformed back into a rigid, weatherproof box, but does not require the assistance of a crane or any solid base to do so. Unlike the rigid steel store, foldable steel storage containers directly address an issue in the moving and portable storage industry: the logistics of relocating empty containers among depots and job sites. A rigid box, whether full or empty, occupies the same volume of space when it is on board, while the folding storage containers take up much less space when folded, which is the basic idea behind the calculations above.
MEOX manufactures these units in four sizes — 10 ft, 12 ft, 16 ft, and 20 ft — as part of its custom shipping container line, built for moving companies, transportation operators, and commercial self-storage providers, primarily exporting to the United States and Canada.
Why the Fold-Flat Design Changes the Freight Math
For any business engaged in the operation of mobile storage units, the recurring costs are not the unit itself but the empty moving costs from the warehouse to the next job site. A fixed steel container moves from one place to another at its overall dimensions, while a collapsible unit occupies about 1.15 ft in height, which means:
- Up to 18 folded 10 ft or 12 ft units, or 12 folded 16 ft or 20 ft units, fit inside a single standard 40′ HC shipping container.
- Return-leg freight cost per unit drops sharply compared with shipping the same volume of rigid boxes one at a time.
- Depot storage footprint shrinks, since empty stock can be stacked flat rather than parked as full-size boxes.
For a moving company or storage operator scaling a fleet, that freight and yard-space saving compounds with every unit added, which is the main reason fold-flat designs have gained ground over rigid boxes in the North American portable-storage market.
Available Sizes and Capacity
| Size | Internal Capacity (cu.ft) | Folded Height | Loading Qty / 40’HC |
| 10 ft | 541.93 | 1.15 ft | 18 units |
| 12 ft | 673.00 | 1.15 ft | 18 units |
| 16 ft | 897.52 | 1.15 ft | 12 units |
| 20 ft (most popular) | 1,091.84 | 1.15 ft | 12 units |
All four sizes share the same door opening (5.89 ft W × 6.37 ft H), so buyers standardizing a mixed fleet do not need different locks, ramps, or loading procedures across sizes.
Construction and Corrosion Protection
The steel frame, wall panels, ceiling system, and ground floor are constructed out of structural steel Q235 grade steel structure with a minimum wall thickness of 1mm, wall panels made of galvanized steel and thickness of 1.5mm and panels for roof made of likewise material and thickness of 1.2mm with two-component polyurethane coating.
Hot-dip galvanizing is governed internationally by ISO 1461, which sets the coating-thickness and test requirements for zinc coatings applied to fabricated steel articles. A properly galvanized coating that meets this standard corrodes at a small fraction of the rate of unpainted steel, which is what allows MEOX to rate these units for 15–20 years of outdoor service with individually replaceable bolted panels rather than a welded frame that has to be scrapped as a whole unit when one panel fails.

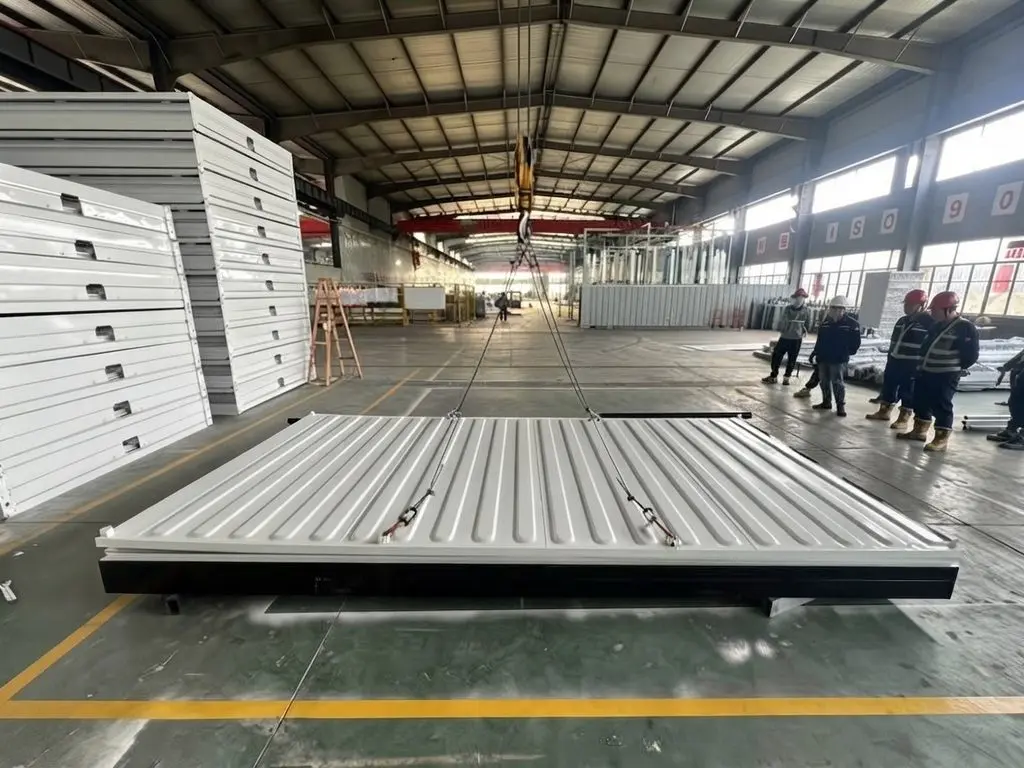

The folding flooring must also be noted: the structure of the floor panels is such that it is nearly entirely located in the wall and roof stack when folded down to a height of 1.15 ft, and when this floor is opened, the panels convert into an uninterrupted walking surface suitable for full loading.
Security Features
- Double-leaf steel doors with heavy-duty hinges, high-security bar locks, and dual padlock hasps as standard.
- A recessed, flush-mount cam-lock housing with no exposed hardware for a pry bar or bolt cutter to target.
- Custom hexagonal security fasteners on exterior panel screws, rather than standard hex or Phillips heads.
These characteristics are most important when focusing on unattended overnight depot storage and multi-stop delivery routes since standard padlocks and hasps are normally the easiest way to force entry into a rigid container.
Where Foldable Steel Storage Containers Are Used
- Moving companies: portable storage pods for residential and commercial relocations.
- Self-storage facilities: a premium, on-site pod storage tier alongside fixed units.
- Construction sites: tool and materials storage where crane access isn’t available.
- Depot and fleet operators: consolidating empty units for cheaper repositioning between jobs.
Construction sites that need secure storage alongside worker housing often pair a foldable unit with a container camp setup from MEOX’s sister brand ZN House, and sites that also need on-site power infrastructure can add a prefabricated E-House for switchgear and distribution equipment. Projects storing regulated or hazardous materials should instead look at MEOX’s purpose-built dangerous goods container, which carries its own compliance certifications that a standard storage box does not.
Case Study: Hurricane-Season Storage Demand, North Carolina and Georgia, November 2024
The scale-up challenge that the fold-flat design has been developed to address becomes evident in disaster response situations. In November 2024, following hurricanes in North Carolina and Georgia, a US portable-storage rental company had sent over 150 containers to the affected regions to allow local residents to safeguard their belongings during the repair work, according to trade publication Rental Equipment Register.
When discussing the return-freight aspect of a massive deployment, it is important to note that, once demand subsides, every single unit has to be moved back to a depot or to the next area impacted by an event. Compact steel units return at their full height and occupy one container slot; gizmo units are collapsible to just 1.15 ft in height, which means that a truck can carry more empty units. The ability to carry more empty units makes the fleet flexible in situations when a rental company is responding to a large weather event in multiple states because it increases the speed with which the fleet will be able to respond to the next emergency instead of waiting with a huge amount of capital waiting at a depot.
Frequently Asked Questions
How long does it take to set up a foldable steel storage container?
A standard unit can be unfolded and locked into place by three workers in under 30 minutes using basic hand tools; no crane or concrete pad is required.
How many units fit in one shipping container for export?
Folded to their 1.15 ft collapsed height, 18 units of the 10 ft or 12 ft size, or 12 units of the 16 ft or 20 ft size, fit inside one standard 40′ HC ocean container.
What is the expected service life?
MEOX rates its galvanized-steel foldable containers for 15–20 years of outdoor service with routine maintenance, with individual bolted panels replaceable without scrapping the frame.
Can the containers be customized for branding?
Yes. MEOX applies full RAL color ranges, company logos, and custom door placement during manufacturing, which is a common request from moving companies using the units as mobile advertising on delivery routes.
Get a Custom Foldable Steel Storage Container Quote
Whether you need a handful of branded units for a fleet expansion or a bulk order for depot restocking, MEOX can advise on sizing, customization, and shipping to the US, Canada, or elsewhere. Contact the MEOX team with your required size, quantity, and destination port for a project-specific quote.
Disclaimer
The specifications, sizes, and statistics discussed within this article are sourced from ZN MEOX and other third party references mentioned above. The specifications may differ from one project to another or depending on the region; therefore, the customer should check with MEOX directly for the latest specifications, pricing and any relevant compliance specifics.
