20ft Double Door Container: The Smart Way to Load, Unload, and Store Long Cargo

Loading a long steel pipe or a bundle of cable coils into a standard container can feel like threading a needle. You push cargo in from one end and hope it fits, hope it doesn’t scrape the side walls, and hope unloading won’t take another hour. This is exactly the problem a 20ft double door container was designed to solve.

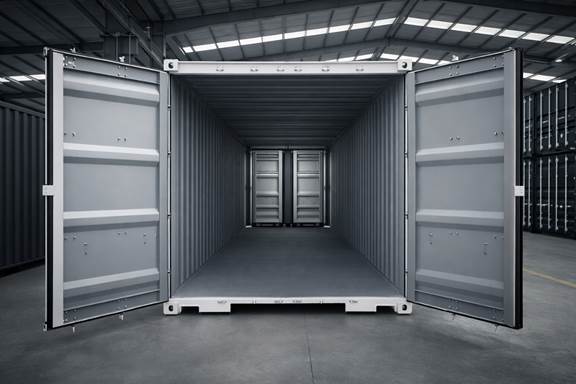

Also called a tunnel container, this unit has doors built into both ends instead of just one. With both sides open, the box effectively turns into a tunnel – goods are loaded on one side and exit on the other, without having to be turned around. Contractors, freight forwarders, and site managers who have to deal with heavy or cumbersome loads know that such a minor but critical detail can make a big difference in man-hour savings on every project.

What Is a 20ft Double Door Container?

A double door container is a standard ISO shipping container modified with a second set of doors at the opposite end. Instead of one entry point, you get two, which is why the industry also calls it a tunnel container — when both ends swing open, you can see straight through it.

This layout is particularly useful for:

• Long cylindrical goods like pipes, rods, and cable coils
• Sites where cargo needs to be accessed from either direction
• Projects that require the container to double as a safe walkway or passage between two working areas
• Storage setups where two independently accessible sections are more practical than one

Because a double door shipping container can also be split into two separate storage compartments, some operators repurpose it as an on-site warehouse rather than using it purely for transport.

Key Features of the MEOX 20ft Double Door Container

Feature	Detail
Door configuration	Opening doors at both ends (tunnel design)
Available sizes	20FT, 40FT, and 40FT High Cube
Certification	ISO and CSC certified for road, sea, and rail transport
Customization	Colors, branding, and layout can be adjusted on request
Stacking	Compatible with standard container stacking systems

This means that by using the two double locking mechanisms at opposite corners, the units can be easily connected at their ends, which can prove useful on sites where there is a shortage of ground area; at the same time, the requirement for a long and uninterrupted loading tunnel is still present.

20ft Double Door Container Specifications

Parameter	Specification
External dimensions (L×W×H)	6.058m × 2.438m × 2.591m
Internal dimensions (L×W×H)	5.898m × 2.352m × 2.393m
Door size (W×H)	2.343m × 2.28m
Frame material	SPA-H / SM50A side rail, SM50A / SS41 end rail
Roof panel	T1.6 thick SPA-H
Paint thickness	140μ
Tare weight	2,000 kg

These factors are aligned with a general system outlined in the ISO 668 standard that sets series 1 freight container specifications for outer dimensions, weight limits and door sizes on an all-industry level. ISO 668 is an international standard that categorizes freight intermodal shipping containers and regulates their sizes, dimensioning, and weight limitations. It works within a well-regulated standard is important as the double door container will also work with ships, cranes, chassis, and the worldwide railway network for their loading, unloading, transportation, etc. (Wikipedia).

Where a Double Door Shipping Container Gets Used

A 20ft tunnel container for construction sites is one of the most common applications, since crews often need a pass-through structure for equipment or personnel between two active zones. Beyond construction, this container style shows up in:

• Pipe and cable transport — long goods slide straight through instead of being angled in
• Cross-loading operations — cargo is loaded from one truck and unloaded directly onto another
• Temporary walkways — a secure, weatherproof tunnel between two work areas
• Dual-zone storage — the box is split into two separately accessible sections

If your project instead needs side access rather than end-to-end access, a side opening shipping container may be a better fit, while offshore or marine projects often call for a DNV-certified offshore container instead.

Real-World Case Study: Cable Coil Logistics at a Wind Farm Site

A contractor of a wind mill farm in Southeast Asia was having great difficulties in transporting large cable coils across the site due to very narrow roads. A standard single-door container was leaving only a very small clearance for a forklift to carry out lifting operations after it is done loading a coil and that would have to be repositioned manually by a human since it wasn’t physically possible to move a forklift once the cargo was inside. Unloading was also a slow process that took quite a lot of time since those same coils had to be dragged back along the same road through which they had originally entered.

The project team switched to 20ft double door containers supplied and customized by MEOX. With doors at both ends, coils could be driven straight through using a forklift on one side and removed directly from the opposite end. The site also used two units coupled together to form a longer covered tunnel between the staging area and the turbine assembly zone. Loading and unloading times on the affected work packages dropped noticeably, and the containers doubled as secure, weatherproof storage during off-hours.

20ft vs 40ft Double Door Container: Which One Fits?

Consideration	20ft Double Door Container	40ft Double Door Container
Best for	Tighter sites, shorter loads	Longer cargo runs, higher volume
Tare weight	Lighter, easier to reposition	Heavier, needs more lifting capacity
Site footprint	Smaller, fits constrained layouts	Requires more clear space
Typical use	Pipe/coil transport, short passageways	Extended tunnels, larger warehousing splits

Frequently Asked Questions

Q1: What is the main advantage of a double door container over a standard container?
A: A regular container only gets opened from one side, so the longer or awkwardly shaped cargo, the more you have to push it in and pull back the way you came. A shipping container with two doors will just give the goods a direct path, which in return will save you time and the chance of a product getting damaged due to being repacked several times.

Q2: Can a 20ft double door container be used for storage instead of shipping?
A: Yes. Because it can be divided into two independently accessible sections, many operators use it as a compact on-site warehouse or dual-purpose storage unit rather than only for transport.

Q3: Is a double door container certified for international shipping?
A: A properly built unit should carry both ISO and CSC certification. One of the international agreements, called the 1972 Convention for Safe Containers, gives a common set of tests and strength requirements for maintaining safety during the transport and handling of containers. It is also a regulatory body that puts forward and develops worldwide regulations for the safety of containers being transported by road, rail and inland waterway. You should also make sure the container has been certified properly by checking the certification documents. If the carriers have any doubt about the certification of containers, they may refuse to accept them. (International Maritime Organization).

Final Thoughts

A 20ft double door container is a small design change with a big practical payoff: faster loading, easier unloading, and more flexible storage. Whether you’re moving pipe, coordinating a tight construction site, or need a temporary passage between work zones, the tunnel-style layout solves problems a standard container simply can’t. For sites needing a fully sealed alternative for easier relocation between projects, it’s also worth comparing this option against a foldable steel storage container.

Ready to configure a double door container for your project? MEOX manufactures ISO and CSC-certified 20ft, 40ft, and 40ft High Cube double door containers with customizable colors, branding, and layouts. Reach out to the MEOX team for a quote tailored to your site requirements.

---

Disclaimer: The technical data, dimensions, and materials referenced in this article are based on MEOX’s own manufactured container products. Actual specifications, materials, and technical details may vary by order and should be confirmed directly with MEOX before finalizing a purchase.
