In the past, constructing a power substation was synonymous with long periods of civil works, weather disruptions, and the constant fear of budgets running over. Nowadays, a modular substation can be built, tested in a factory, and delivered ready for operation. This major change is prompting utilities, data centers, as well as industrial sites to rethink the way they design their electrical house.
Essentially, a modular substation, which is typically delivered as a ready-to-install eHouse integrates the switchgear, transformers, and control systems in a single, transportable steel container. Since the unit is pre-wired and pre-tested, the on-site personnel will have quite a bit less time for installation and most of their time will be devoted to commissioning. Here, we will look at the functioning of the technology, the situations in which it can be most effectively used, and the factors that a purchaser should take into consideration before ordering one.

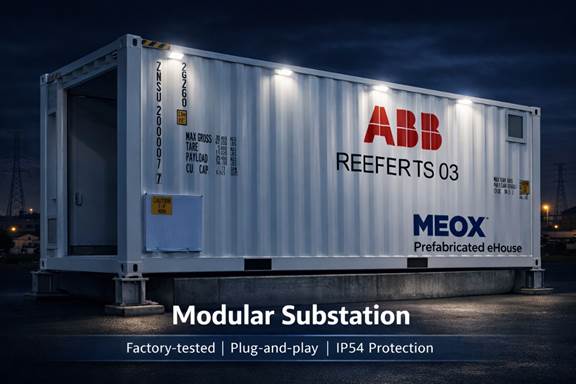

A modular substation refers to a standalone electrical house, designed and built off-site in a factory setting under controlled conditions. Usually, MV/LV switchgear, transformer protection relays, and auxiliary systems are accommodated inside a steel frame looking like a shipping container. Since the complete unit is put together and tested in the factory, it operates as a plug-and-play substation once it is delivered to the site of the project.
Also, the design is known by various names, such as electrical house, power house, or containerized substation. No matter the name, the objective remains unchanged: provide dependable power infrastructure quicker than a traditional brick-and-mortar substation building. MEOX Prefabricated eHouse is one instance of this strategy, capable of housing both high-voltage and low-voltage provisions within a single modular footprint.
It is usually a combination of timeline, mobility, and cost certainty that leads one to decide between a modular substation design vs a conventional civil-engineered substation. This table illustrates the main differences.
| Criteria | Modular Substation | Traditional Civil Substation |
| Installation Time | 6-10 weeks total project cycle | 6-18 months depending on complexity |
| Site Work | Minimal; basic foundation only | Heavy civil engineering required |
| Mobility | Relocatable and expandable | Fixed, costly to modify |
| Quality Control | 100% factory tested before shipment | Final testing happens on-site |
A containerized substation is ideal for projects that are not able to accommodate lengthy construction periods or interruptions arising from a shortage of manpower. Typical usage comprises data centers, renewable energy locations, mining camps, oil and gas installations, and temporary extensions of the grid. Besides that, locations with adverse environments are also able to take advantage of the protection of a steel enclosure that can be certified to be dust, moisture, and corrosion-resistant.
Energy storage facilities usually match the modular substation with a Battery Energy Storage Container, whereas backup power configurations often do a combination with a Generator Container for safety.
It is not just about choosing the size of the box when you are specifying a modular substation. Usually, engineers consider voltage level, arrangement of the equipment, places where cables are connected and level of environmental protection. Reference specifications for a 20-foot prefabricated E-House unit are given in the table below.
| Parameter | Reference Specification |
| External Dimensions | 6096 x 2438 x 2896 mm |
| Material | SPA-H weather-resistant steel |
| Enclosure Protection | IP54 standard; IP65 optional |
| Operating Temperature | -20°C to +50°C standard range |
| Structure Standard | ISO 1496-1 freight container design |
Note: specifications above are reference figures for a standard 20FT unit and can be customized per project.
Electrical compliance is just as important as the structural design. Switchgear cabinets in a modular substation are typically made following standards similar to those of a global low-voltage switchgear standard, which specifies the conditions for design verification and routine testing.
A distribution system operator required a walk-in eHouse for an industrial power distribution project. The main difficulty was in fitting a substation construction, which usually takes several months for the civil and electrical works, into an even shorter schedule, while still maintaining the safety and testing rigor.
MEOX provided a factory-built, walk-in modular substation that was intended to be placed on a raised foundation, which enhanced the resistance to water ingress and ground-level hazards. The unit was subjected to the complete factory test and pre-commissioning before shipment, and the usual delivery time was shortened to about six to ten weeks based on the level of customization.
Versus an on-site substation conventional build, the modular strategy reduced combined civil and electrical work by more than half and improved system integration via pre -commissioning. The walk-in design also enhanced the safety of inspection and maintenance, making these activities easier to schedule.
How long does it take to deploy a modular substation?
Factory assembly and testing generally shorten the overall project duration to approximately six to ten weeks, rather than a few months for a traditional civil-built substation. The specific timeframes vary based on the voltage class and the degree of customization.
Can a modular substation be relocated after installation?
Yes. Since the enclosure is constructed on a steel chassis like that of a shipping container, it is quite feasible to install the unit on a skid or mount it on a trailer for redeployment in case the location or the scope of the project changes.
What standards apply to modular substation switchgear?
The International low-voltage and medium-voltage switchgear standards are, in fact, the main basis on which switchgear assemblies are usually designed, whereas the container structure requirements of the ISO standard apply to the enclosure only.
A modular substation cannot substitute all the work of the traditional build but for projects that prioritize speed, fixed costs, and factory-certified quality, it is practically becoming the default solution. As there is an extension of the power grid and the production from renewable energy sources is increasing, the prefabricated electrical house is literally becoming the way to keep the pace of development without the loss of working conditions and performance of the entire system.
Are you prepared to learn more about a modular substation that matches your project’s voltage, layout, and site conditions? Talk to MEOX about a custom Prefabricated E-House package.
Disclaimer
All technical data, dimensions, and case study information in this article refer to the container products made by MEOX. Specs, materials, and technical aspects could differ from one project to another and may change without any notice given in advance.
