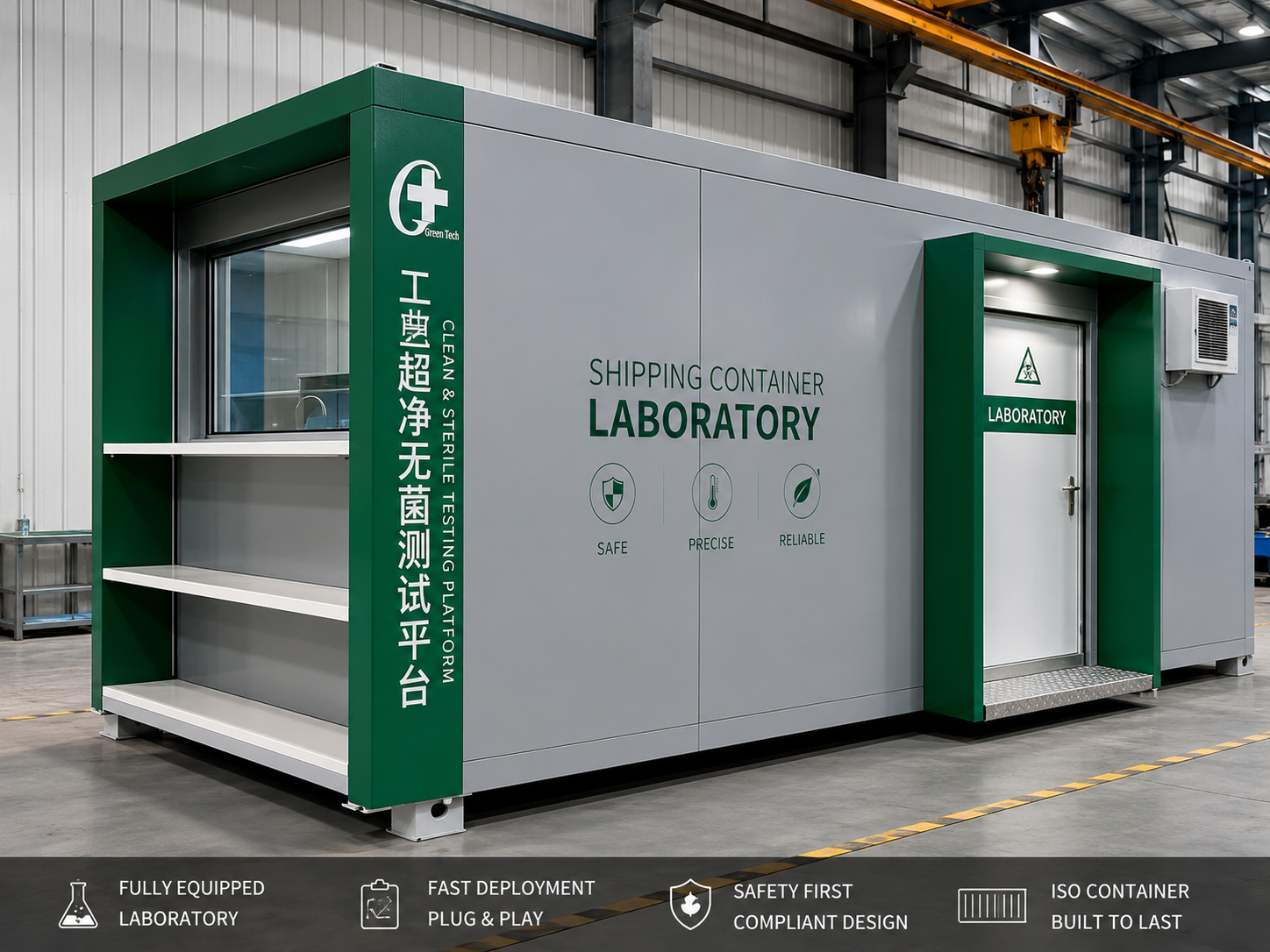

Shipping Container Labratory
In case of an outbreak at a rural clinic, or when a mining company requires geochemical results before the next blast, it is absolutely impossible to wait for months for a permanent facility. By using a shipping container laboratory, that problem gets solved. It packs a cleanroom-grade testing space inside a steel box which can then be transported by truck, rail, or ship. Such mobile units are a combination of airtight construction, filtered air handling, and fireproof interior finishes that can support PCR testing, water quality analysis, and the like. This guide clarifies what a shipping container laboratory is, how it is built, and where it is most useful for teams working in a location do not have access to a fixed facility.
A shipping container laboratory is a steel ISO container frame that is fully equipped with a testing space. A standard container that is converted with basic shelving is different from a purpose-built lab container that is made with fully welded joints for airtightness, C4-standard exterior coating for corrosion resistance, and fireproof, antibacterial interior wall panels. Pre-installed circuits and climate control maintain the internal environment at a level stable enough for sensitive operations like DNA sequencing, microbiology, and chemical analysis.
As the complete mobile container laboratory (MCL) ships as a single component, the MCL can be transported using a truck and then set up in less than one week, as compared to traditional laboratory setups which may take several months depending on how many pieces the laboratory contains. The World Health Organization has documented this advantage directly: rapid response mobile laboratories represent a genuine breakthrough in a country’s ability to detect, respond to, and contain outbreaks, largely because they reach remote testing sites that fixed labs cannot (WHO/Europe, 2019).
| Component | Specification |
| Frame Structure | Weather-resistant steel |
| External Dimensions | 6058 x 2438 x 2591 mm (L x W x H) |
| Internal Dimensions | 5670 x 2140 x 2300 mm (L x W x H) |
| Skylight Window A | 900 x 2170 mm tempered glass with louver |
| Skylight Window B | 1900 x 1000 mm tempered glass with louver |
| Door | 1740 x 2170 mm stainless steel |
| Electrical | Switch, socket, distribution box, breaker, wiring |
Speed remains the top reason mentioned. Usually, a prefabricated lab container can be ready for deployment within 10 to 14 days after the order is confirmed, while a traditional building on-site can take six months or even longer. Cost comes next as a factor: since the exterior, insulation, and utility work of a containerized lab are done in a factory under controlled conditions, it is not uncommon for this kind of lab to be really cheaper than an equivalent modular one.
Durability is as important in the outdoor environment as in the lab. Corten steel frames are designed to resist sandstorms, endure sub-zero temperatures during surveys, and withstand high humidity without losing their structural integrity. This means that a mobile testing lab can be moved and used at different project sites rather than being discarded after one usage. The air quality close to cleanroom level is preserved through HEPA-filtered HVAC and pressure zoning. This method aligns with ISO 14644-1, which is the internationally recognized standard for classifying air cleanliness into nine ISO classes based on particle concentration. (gCon Bio, ISO 14644 Guide).
| Factor | Container Laboratory | Traditional Fixed Lab |
| Deployment Time | 10-14 days | 6-12 months |
| Relocation | Fully mobile, reusable | Fixed, non-relocatable |
| Typical Cost | Meaningfully lower | Baseline |
| Site Requirements | Minimal, can run off-grid | Full utility infrastructure |
Not every project needs the same footprint. A single 20ft shipping container laboratory suits a solo research task, such as PCR testing or petrochemical sample prep, and can be wired for negative or positive pressure depending on the required biosafety level. For longer engagements, semi-permanent ISO container labs bolt onto an existing site with three-phase power and roll-up doors for equipment loading, then stay in place for the length of a 12-month survey.
Larger operations sometimes need more than one box. Linking several 40ft container units into a module lab lets teams separate a DNA sequencing room from a vibration-sensitive microscope suite, or pair a mining assay room with an ore-crushing annex. Field teams running continuous water quality monitoring programs often favor this configuration because it keeps wet-chemistry work away from analytical instruments. Across every configuration, the underlying platform stays the same: a weather-resistant steel shell that can be reconfigured internally as project needs evolve. Explore the full range of special equipment solutions for other containerized applications.
A local healthcare diagnostics company needed a fast-installation BSL-2 unit to upgrade their testing capabilities in remote areas. As building a traditional laboratory was out of sync with their project timeline, the supplier had to resort to other solutions. The primary difficulties were airtightness at the containment level, provision of reliable HVAC performance even during hot weather, and the unit being ready for use within a matter of weeks rather than months.
ZN MEOX provided a completely welded 20ft laboratory container equipped with fireproof and antibacterial wall panels. The container was pre-equipped with HEPA-filtered air conditioning and had a stainless-steel door and skylight system made to C4 corrosion-resistance standards. The lab came with the electrical distribution already wired which reduced on-site installation time to a few days. The client’s clinical operations team stated that the laboratory was fully functional within a couple of days after arrival and has been able to boost testing capacity as well as reduce field response time. Besides, there hasn’t been any report of thermal shutdown since then.
Q1: Can a shipping container laboratory be made energy self-sufficient?
Yes. Pairing the unit with a solar power system, along with LED lighting and battery storage, lets a container lab run independent of the local grid, which is valuable for remote or disaster-response sites.
Q2: What biosafety level can a container lab support?
Most units are configured for BSL-2 work, covering PCR testing, microbiology, and general diagnostics. Higher-containment BSL-3 configurations are possible but require additional pressure zoning, filtration redundancy, and access controls.
Q3: How long does it take to deploy a container laboratory on-site?
Once the unit arrives, most teams have testing operations running within days, since electrical, HVAC, and interior finishes are completed before shipment. Total lead time from order to on-site readiness is typically around two weeks.
Whether a project needs a single field-testing unit or a multi-container research campus, ZN MEOX engineers each laboratory container specified for the section biosafety climate and workflow. Please contact the ZN MEOX staff to talk about your needs, delivery schedules and available options for your next deployment.
Watch the following video on ZN MEOX’s participation at Intermodal Asia 2025 in Shanghai:
Disclaimer: The technical data, dimensions, and materials referenced in this article are based on ZN MEOX’s own manufactured container products. Actual specifications, materials, and technical details may vary by project and are subject to change without notice. Please consult ZN MEOX dir
